MagTek iDynamo 6

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

Please Note: This unit requires special encryption and a member of our sales team will reach out for additional information at time of purchase. After encryption, these units are non-cancellable and non-returnable.

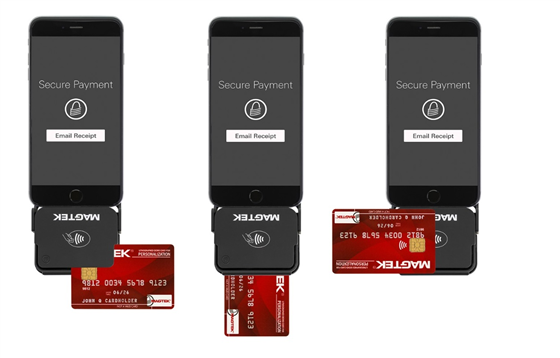

Cafés and restaurants, boutiques and large retailers benefit from iDynamo 6, the next generation of MagTek secure card reader authenticators (SCRAs). iDynamo6 accepts EMV Contactless, NFC payments including enabled mobile wallets including Samsung Pay, Google Pay, Apple VAS, and Apple Pay, magstripe, and EMV Contact Chip transactions. The rechargeable battery pack or connection to a USB 3.0 host, makes all of these transaction types possible. As long as the device is receiving enough power, the battery pack can be removed if needed, to perform the wide variety of transactions. iDynamo 6 delivers a smart solution for companies that need the most flexibility in the smallest form-factor at a great price.

Operating Systems

iDynamo 6 is flexible and is the perfect choice for solutions that run on Windows, Android, or iOS host-devices, with Lightning or USB C connectors depending on the host and operating system. iDynamo 6 has two separate connector configurations to select from:

  • iDynamo 6 Lightning and USB C receptacle
  • iDynamo 6 with USB C Plug and USB C receptacle
  • iDynamo 6 USB-C - Direct mount or cabled connection to Android hosts with USB C port and USB On-The-Go (OTG), to iOS hosts with USB C connector, and to Windows hosts with USB C connector.

    iDynamo 6 Lightning - Made for iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad (5th and 6th generation)

    Supported Processors (See Downloadable Datasheet for more information)

  • Chase (Orbital)
  • Elavon (ViaConex)
  • NAB (EPX)
  • First Data (Nashville, Omaha, North, BuyPass)
  • Heartland (Portico)
  • TSYS (MultiPass)
  • WorldPay (Express)
  • MSR
    Triple Track (TK1/2/3); Bidirectional read; ISO 7810, 7811; AAMVA driver licenses
    EMV Chip Contact
    EMVCo L1 and L2 ISO/IEC 7816 / Terminal type 21 and 24
    EMV Contactless
    EMVCo L1 and L2, EMV Level 1 /C-2/C-3/C-4/ ISO/IEC 14443 (Type A/B)
    NFC Contactless / Mobile Wallets
    ISO/IEC 14443 |(Type A, Type B)C-6 EMV Contactless, Apple Pay®, Apple VAS®, D-PAS®, ExpressPay®, Google Pay, PayPass™ payWave®, Samsung Pay®
    MTBF
    MSR Swipes - 200k<br> EMV Inserts - 200k
    Supported Operating Systems
    iOS, Android, Windows
    CPU
    Cortex M3
    Memory
    1MB
    Interface
    USB Type C with high current USB 2.0
    Main battery
    Lithium Polymer (LiPo)
    Power Drawn
    Power via USB or Battery. USB: 5 VDC
    Dimensions (L x W x H):
    2.75 x 2.1 x 0.73 in. without battery pack<br> (70.0 x 53.9 x 18.75 mm) without battery pack<br> 2.8 x 2.24 x 1.3 in. with battery pack<br> (72.72 x 57.8 x 33.0 mm) with battery pack
    Weight
    1.68 oz (47.6 grams) with battery pack<br> 0.90 oz. (25.4 grams) without battery pack
    Temperature
    32°F to 113°F (0°C to 45°C)
