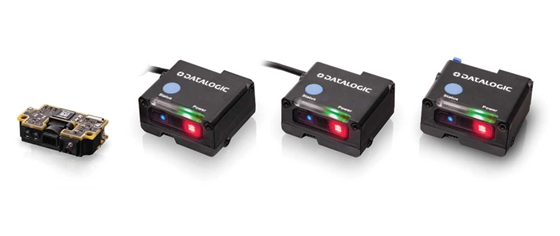

DataLogic Gryphon GFS4500 & GFE4500
Compact Scan Modules for Value-Added Integrated Solutions Using 1D and 2D Barcodes
Easy Integration

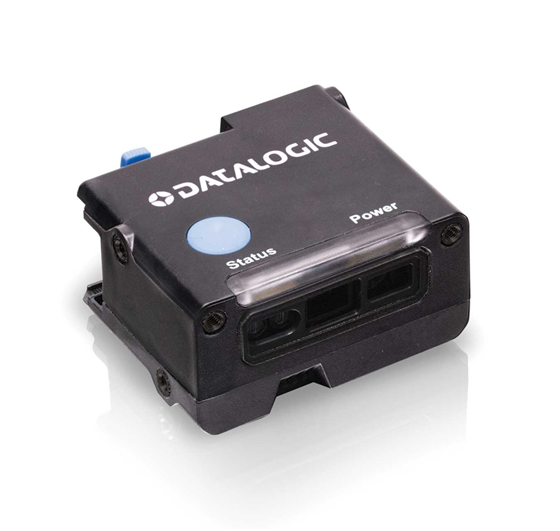

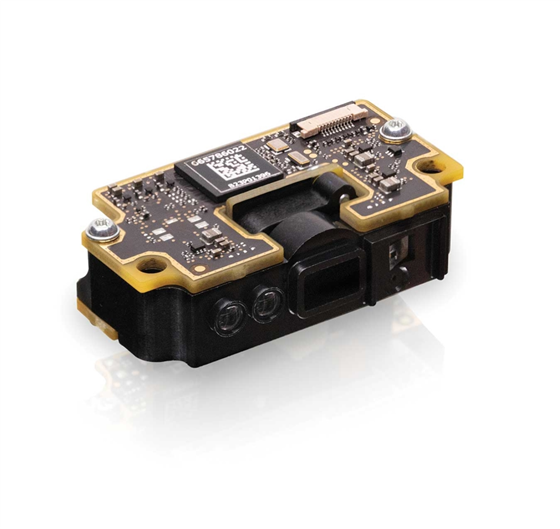

Designed for easy integration and simple installation, the Gryphon 4500 Fixed Series scan modules provide ready-to-use versatile solutions for kiosks and machine manufacturers. The GFS4500 module can be easily integrated with little effort in different enclosures from multiple sides with its small regular size and various fixing points. The “naked” version GFE4500 is ideal for tailor-made fully integrated solution.
Maximum Reliability

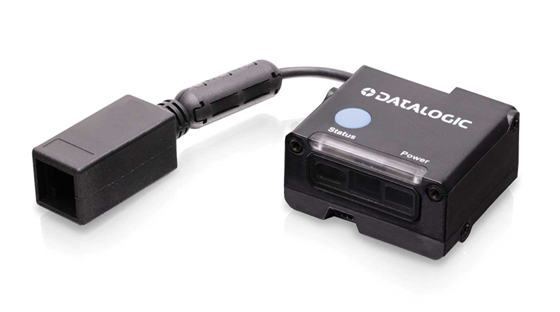

The Gryphon 4500 Fixed Series scan modules are made to last with a durable design for maximum uptime. You can rely on them for both indoor and outdoor applications with the IP54 sealing, the UV protected scratch resistant output window, the wide range operating temperature and the great resistance to accidental drops, shock, and vibrations. RS-232 and USB/RS-232 models have an integrated cable while the USB models are equipped with a locking clip to prevent the USB cable from coming loose or disconnecting. The 5-year factory warranty proves the Gryphon 4500 Fixed Series has been designed to last.
Top Performance

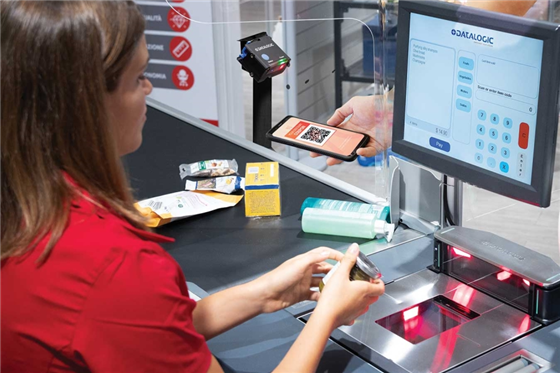

The Gryphon 4500 Fixed Series 2D scan modules features the most advanced Megapixel sensor technology with distinctive red or white illumination technology with adjustable brightness for outstanding reading performance. The wide angle optics allows snappy scanning of any 1D and 2D barcodes and it starts reading at almost contact while offering improved motion tolerance and first pass decoding of fast-moving codes. The speedy reading of tickets, boarding passes, loyalty cards, and coupons from mobile phone displays is granted by the ultimate decoding algorithms you can count on.
Best Feedback

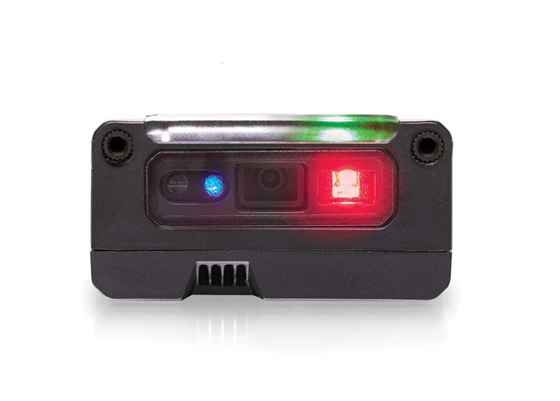

Datalogic’s ‘Green Spot’ technology coupled with a high visibility topfront LED and integrated loud beeper with adjustable intensity provide superior good-read feedback
Features
• Compact dimensions for easy installation and simple integration
• Wide angle 1 MP optics for superior scanning and Depth of Field
• Advanced motion tolerance optics for first pass reading of any moving barcode
• Automatic sensing, software, external, manual trigger options available
• Datalogic distinctive red or white illumination technology with adjustable brightness
• Intuitive Blue Dot LED aimer for easier targeted scanning
• Superior good-read feedback (Datalogic’s ‘Green Spot’ technology, high visibility topfront LED and integrated beeper with adjustable intensity)
• Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes; Digital Watermarks on red illumination models
• Image capture and document scanning capabilities
• USB, RS-232, USB/RS-232 communication options
• 1 Digital input plus 1 Digital output software programmable (available on specific models)
• Water and Particulate Sealing Rating: IP54
• Disinfectant-Ready enclosure withstands cleaning with harsh disinfectant solutions
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
Shop Gryphon GFS4500 & GFE4500 Windows Models
GFS4520-BKK1-RED
Gryphon GFS4520 2D Imager Kit. Red Illumination. 5V, USB-Only. microUSB connector, Black (Kit Includes Scanner and USB Cable 94A051968)
GFS4520-BKK1-WHT
Gryphon GFS4520 2D Imager Kit. White Illumination. 5V, USB-Only. microUSB connector, Black (Kit Includes Scanner and USB Cable 94A051968)
GFS4520-BK-RED
Gryphon GFS4520 2D Imager. Red Illumination. 5V, USB Only. Black. Order Micro USB Cable Separately.
GFS4520-BK-WHT
Gryphon GFS4520 2D Imager. MP. White Illumination. 5V, USB Only. Black. Order Micro USB Cable Separately.
GFS4550-BKK2-RED
Gryphon GFS4550 2D Imager. MP. Red Illumination. 5-14V, RS232 DB9 Only. Black. Order RS232 DB9 Interface Cable Separately.
GFE4590-RED
Gryphon GFE4590 2D Imager With OEM Decoded Scan Engine. Red Illumination. 5-14V, USB & RS232 Connection. Order USB / RS-232 12-Pin Cable Separately.
Shop Gryphon GFS4500 & GFE4500 Accessories

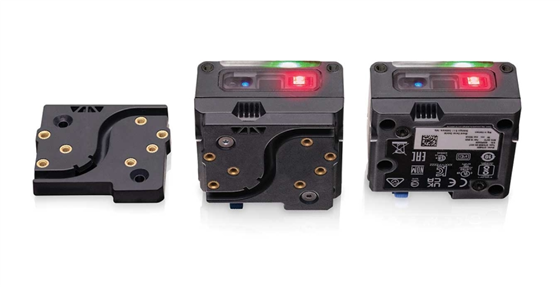

MA-4500-BK
Mounting Adapter to replicate the GFS4400 fixing holes
94A051968
Skorpio X3 Interface Cable, Connects Dock to PC, USB Interface
90G001095
Cable, RS-232, 12' Coiled (For Magellan)
90A051330
9 ft. Coiled Serial RS232 Cable, (Requires Power Supply)
90A051891
Cable, RS-232, 9P, Female, Coiled, CAB-408 (Power available on pin 9 of the connector or through external power supply), 6 ft.
90G000008
Cable for Datalogic Scanners, Grey, Straight 2 Meters, CAB-327, RS232, DBP, Receipt, E/P - Replaces 90G001070
90A051230
Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
90A051710
Cable, RS-232, 9P, Male, Beetle POS, Straight, CAB-389, Power Off Terminal, 6.5 ft.
ZSC2GFS4551
DataLogic Ease of Care 5-Year Comprehensive Warranty for Gryphon GFS4500. Covers Normal Wear & Tear and Accidental Breakage Coverage. 2-Business-Day Turnaround For Replacement Unit (Excluding Transit). Both Ways Freight Paid By Datalogic.
90G001092
RS-232 Serial Interface Cable, For Connecting to Magellan Scanner / Scale, 6 Feet
90A052065
Cable, USB Type A, 2M Straight, Enhanced, For Datalogic Scanners
90A052258
Straight USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2 Meter, Black
90A052285
Coiled USB Cable for Datalogic Barcode Scanners. Type A, TPUW. 2.4 Meter, Black
90A052086
Cable, RS-232, DCE, 9P, Extended Power-Power off Terminal, 4 Meters
90A052101
Cable, USB, Power Conn, Straight, Power off terminal, 2 Meters, CAB-413E2
90A052100
Cable, USB, Type A, Coiled, Power off terminal, 2 Meters, CAB-424E
90A052066
Cable, USB, Type A, Enhanced, Coiled, Power Off Terminal, 5 Meters
90A052361
Cable, USB, Type A, External Power, High Current, PVCW, Straight, 1.2M, Black (for use with WLC4X90 Wireless Charging Base Station)
90A052356
Cable, USB, Type A, External Power, High Current, PVCW, Straight, 3M, Black (for use with WLC4X90 Wireless Charging Base Station).
90A052278
Cable, USB, Type A, TPUW, Straight, 2M, White
90A052289
Cable, USB, Type A, TPUW, Coiled, Power off Terminal, 5M, Black
90A052360
Cable, USB, Type C, High Current, PVCW, Straight, 1.2M, Black (for use with WLC4190 Wireless Charging Base Station)
90A052355
Cable, USB, Type C, High Current, PVCW, Straight, 3M, Black (for use with WLC4190 Wireless Charging Base Station)
90A052354
Cable, USB, Type C, PVCW, Coiled 2.4M, Black
90A052352
Cable, USB, Type C, PVCW, Straight, 2M, Black
90A052302
Datalogic Powered USB Cable. TPUW, Straight, 2 Meters. Black. Straight Can be used with Gryphon GD4500 Series
