Honeywell Granit 1991i SR/XR
Description
Specifications
Download

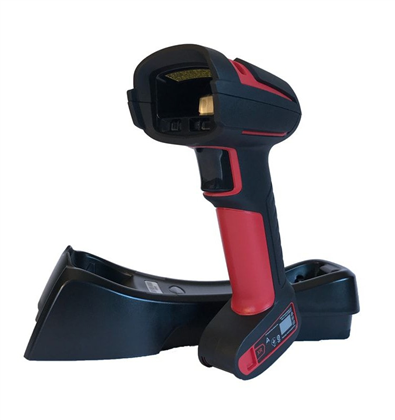

Honeywell Granit 1991i SR/XR

Images may not reflect the actual product
Product Image
small product image0
small product image1
Building off Honeywell's existing line of Granit industrial scanners, the Granit 1991i combines powerful scanning performance, a rugged build, and reliable Bluetooth communication all into one device. Available in both a standard range model (iSR) and an extended range model (iXR), this scanner provides extreme performance scanning, even on damaged and low-quality barcodes. When combined with the scanner's 330 foot ine-of-site Bluetooth range, you'll be able to scan just about anything in your warehouse.
The Granit 1991i was built to survive harsh treatment. With a best-in-class 10’ drop spec, this unit is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long-term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.


Model Comparison
Standard Range The SR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes. For longer distances, refer to other models in the Granit family.
FlexRange The XR model is ideally suited to normal, near-field scanning operations on 1D and 2D barcodes, plus expanded range scanning of UPC to 1.5 m (5 ft) and 100 mil codes to 10 m (33 ft).
Extended Range The XLR model is ideally suited to far-field scanning operations on 1D and 2D barcodes, plus expanded range scanning of 13 mil UPC up to 2 m (6.6ft) and 100 mil code 39 to 24 m (79 ft)
Dimensions - Scanner (L x W x H):
: 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)
Weight
405 g (14.3 oz)
Dimensions – Base (L x W x H):
245 mm x 102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in)
Radio/Range
2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2; Class 1: 100 m (330 ft) line of sight
Drop Specification
2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH 2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH 3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH
Environmental seal
IP67 - Scanner. Base IP51
1991i Extended Range Spec Sheet
Download
1991i Standard Range Spec Sheet
Download

Shop Granit 1991i SR/XR Windows Models

1991IXLR-3USB-5-N

USB Kit: Wireless. 1D/2D, XLR focus, Bluetooth Class 1 (1991iXLR-3), charge & communication base (CCB22-100BT-03N), USB, black, Type A, 3m (9.8), straight, 5v host power, industrial grade (CBL-500-300-S00), with vibrator,

$1471.42

1991ISR-3USB-5-N

USB Kit: Wireless. Ultra rugged/industrial. 1D/2D, Standard Range. Charge and communication base included(CCB22-100BT-03N) USB Type A 3m straight, 5v host power cable (CBL-500-300-S00). North American Version

Cradle:

Cradle Included

Range:

Standard Range

Interface:

USB

$1080.72

1991ISR-3USB-5

USB Kit: Wireless. Ultra rugged/industrial. 1D/2D, Standard Range. Charge & communication base included(CCB22-100BT-03N) USB Type A 3m straight, 5v host power cable (CBL-500-300-S00). World Wide Version.

Cradle:

Cradle Included

Range:

Standard Range

Interface:

USB

$974.97

1991IXR-3USB-5-N

USB Kit: Wireless. Ultra rugged/industrial. 1D/2D, Extended Range. Charge & communication base included (CCB22-100BT-03N) USB Type A 3m straight, 5v host power cable (CBL-500-300-S00).

Cradle:

Cradle Included

Range:

Extended Range

Interface:

USB

$1242.85

1991IXR-3-N

Scanner: Wireless. Ultra rugged/industrial. 1D/2D Extended Range. Bluetooth Cradle Not Included

Range:

Extended Range

Interface:

No Cable Included

Cradle:

No Cradle Included

$1037.10

1991IXR-3SER-5-N

RS232 Kit: Wireless. Ultra rugged/industrial. 1D/2D Extended Range. Charge & communication base included (CCB22-100BT-03N), RS232 Cable, DB9, Female,coiled,3m, 5v Signal (CBL-020-300-C00).

Cradle:

Cradle Included

Range:

Extended Range

Interface:

RS-232

$1312.84

1991ISR-3-N

Scanner: Wireless. Ultra-rugged/industrial. 1D/2D, Standard Range. Bluetooth Cradle Not Included

Interface:

No Cable Included

Cradle:

No Cradle Included

Range:

Standard Range

$901.81

Shop Granit 1991i SR/XR Accessories

SVC1991I-SG3N

1991I, Edge Service, Gold Maintenance Contract, 5-Day Depot, 3-Year, New Purchases

$112.48

SVC1991I-SG5N

Edge Service, Gold Maintenance Contract, 5-Day Depot, 5-Year, New Purchases

$200.95

SVC1991I-SG1R

1991I, Edge Service, Gold Maintenance Contract, 5-Day Depot, 1-Year, Renewal

$44.99

1991IENDCAP

Cordless Granit XP end cap (battery door) for 1991i models

$136.20

CCB22-100BT-03N

Base: Charge and communication. Class 1 Bluetooth. 100m (300'), up to 3 scanners can be connected. Compatible with RS232/USB/KBW cables (sold separately). Assembled in China.

$478.40

CBL-500-300-S00

USB Interface Cable, Black, 3 Meter, Straight

$27.04

BAT-SCN01A

Battery: Lithium-ion battery for Voyager 1202, 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 1990, 3820 and 3820i wireless scanners (Batteries must be shipped via ground shipping)

$99.04

MB4-BAT-SCN01NAD06

Charger: 4 Bay, Desktop Power Supply, NA power supply (46-00525 Level VI), Batteries not included

$717.41

CCB22-100BT-03N-N

Base: Charge and communication. Class 1 Bluetooth. 100m (300'), up to 3 scanners can be connected. Compatible with RS232/USB/KBW cables (sold separately). Assembled in Mexico.

$594.17

COB22

Base: Charge only. Only 1 scanner can be charged at a time. Power supply required and must be ordered separately.

$588.97
