Epson FX-890II
Description
Specifications
Download

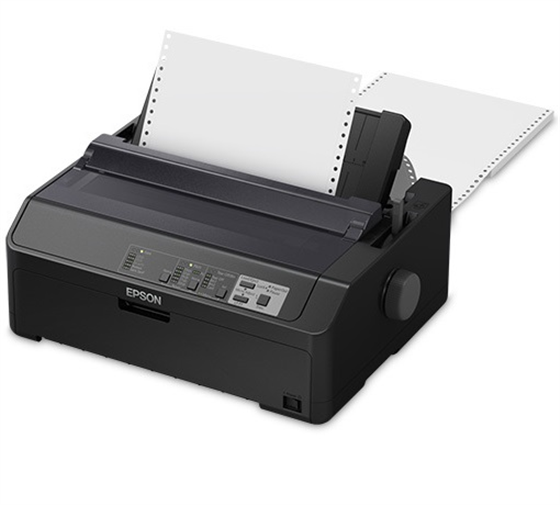

Epson FX-890II

Images may not reflect the actual product
Product Image
small product image0
small product image1

The Epson FX-890II impact printer is the best printing solution to bridge the gap between current and legacy systems. This reliable 9-pin, narrow-carriage impact printer boasts a long life cycle, a 3-year limited warranty and speeds up to 738 cps. Its up-to-7.5-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P®, IBM® PPDS, and MICROLINE® printer languages.

Features

  • Four paper paths (plus one optional) for superior paper handling
  • Prints single sheets and up to 7-part forms
  • Network-ready version available
  • Varying print speeds for different projects
  • Drivers available for Windows XP through 10
  • Bidirectional Parallel, USB, Ethernet interface options available
  • Comes with: Printer, Drivers, Quick Installation Guide, and Power Cable
Dimensions
17.2" x 14.8" x 7" (W x D x H)
Weight
15.8 lb
Interfaces Available
Bidirectional Parallel (IEEE 1284 Nibble Mode supported), USB 2.0
Print Method
9-Pin, serial impact dot matrix
Print Speed
<li>Ultra Speed Draft: 738 cps (12 cpi), 615 cps (10 cpi) <li>High Speed Draft: 612 cps (10 cpi) <li>Draft: 463 CPS (10 cpi) <li>Letter Quality: 115 cps (10 cpi)
Emulation
ESC/P, IBM PPDS, Okidata Microline (FX-890 Okidata Mode only)
Character Set
13 character tables, 13 international countries character sets
Barcodes Supported
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Paper Dimensions
<li>Single Sheets: 3.9" - 10.1" wide x 3.9" - 14.3" long <li>Continuous: 4" - 10" wide x 4" - 22" long <li>Cut-Sheet Feeder: 7.2" - 8.5" wide x 10.1" - 14" long
Print Head Life
400 Million Characters @14 dots/character
Input Buffer
128KB
Paper Thickness
0.018"
Paper Paths
<li>Manual Insertion: Front or rear in, top out <li>Cut-Sheet Feeder: Rear in, top out <li>Tractor: Front, rear, or bottom in, top out <li>Pull Push Tractor: Front or rear in, top out
Software Drivers / OS Support
Microsoft Windows XP, Vista, 7,8,8.1,10; Windows Server 2003, 2008, 2012, 2016
FX-890II Quick Start Guide
Download
FX-890II User Guide
Download

Shop FX-890II Windows Models

C11CF37201

FX-890II - Impact Dot Matrix Form Printer, 9-Pin, Narrow-Carriage, 680 cps, Parallel & USB, Dark Gray

$540.00

C11CF37202

FX-890II NT - Impact Dot Matrix Form Printer, 9-Pin, Narrow-Carriage, 680 cps, Parallel/USB/Serial/Ethernet, Dark Gray

$987.00

Shop FX-890II Accessories

S015329

Black Ribbon (Single) for FX-890 and FX-890II

$8.95

C806381

High Capacity Cut Sheet Feeder for FX-890/880/890II and LQ-570/590/870

$159.00

C12C811141

Paper Roll Holder for FX-890/890II & PLQ-20

$94.00

C825343

PS-180 Power Supply For Epson Receipt Printers (120/220V). Includes AC Cord (205498100). Energy Star Rated.

$56.16
