AML Firebird Self-Service Kiosk

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

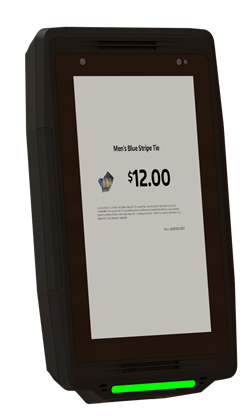

The Firebird Enterprise Kiosk is an all-in-one Android computer with integrated barcode scanning. Designed for a variety of applications in retail, commercial, and light industrial settings, smaller build of this kiosk gives users the flexibility to set up the kiosk in multiple locations throughout the facility for any application. Applications might include price checking, time clock, access control, labor tracking, and much more. Featuring a 7-inch capacitive touchscreen display, the Firebird can be powered with a PoE (Power Over Ethernet) connection, simplifying installation and deployment. Internal USB ports support the addition of label and tag printers, as well as card readers and biometric devices.

The kiosk also features an RGB LED light bar for device and scan status visual feedback. Firebird is powered by Android 8.1 running on an ARM octa-core processor at 1.8 GHz. Using consumer-grade devices becomes a financial headache for businesses in the long run as the cost to repair or replace parts isn’t cost-effective. Firebird was built with commercial-grade components made to withstand long-term continuous usage. At its core, the main functionality of Firebird is to act as a standalone stationary computer equipped with a 2D omnidirectional scan engine. This stationary kiosk is useful in many scenarios including scanning badges, gift cards, products, raw materials, and even tools used in the workplace. The optional camera also gives employees to interact with a camera for video or photographing purposes.

Dimensions (W x H x D)
212mm W x 142mm H x 33mm D<br> 8.3" W x 5.7" H x 1.3" D
Weight
1.25 lbs / 0.57 kg
Display
7" LCD, 720 x 1280 resolution Projective Capacitive Multi-touch
Power
5VDC, PoE (802.3af and 802.3at)

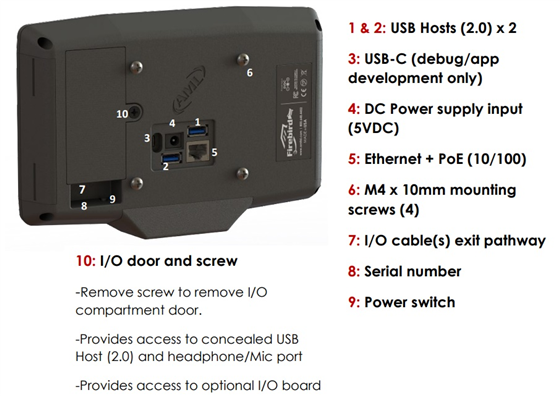

IO Ports
DC Input (5V) Ethernet+PoE (10/100) USB Host (2.0) x 3 USB Type C (for Debug/App Development)<br>RS232 Port Optional
Audio
Dual 2W Speaker (landscape mode) Single Speaker (portrait mode) Headphone/Mic port (3.5mm standard CTIA Phone Jack)
Processor
Octa-Core 64-bit Arm Cortex 1.8 GHz
Operating Systems
Android™ 8.1 (Oreo)
Memory
2GB LPDDR3 SDRAM
Storage
32GB eMMC
Camera
Optional - 13MP, 74.4 degrees, with Autofocus
WLAN
802.11a/b/g/n/ac Dual Band (2.4 GHz / 5 GHz), 2X2 MIMO
AML Firebird Data Sheet
Download
AML Firebird Quick Start Guide
Download
Firebird Accessories Data Sheet
Download

Shop Firebird Self-Service Kiosk Windows Models

KDT7-0012

Firebird Kiosk. Landscape. Android 8.1. 2D Imager.

Orientation:

Landscape

$1644.36

KDT7-0014

Firebird Kiosk. Landscape. Android 8.1. WiFi. 2D Imager with Easy Drivers License Parsing.

DL Parsing:

DL Parsing

Orientation:

Landscape

$1633.45

KDT7-0022

Firebird Kiosk. Landscape. Android 8.1. WiFi. 2D Imager. Camera.

Camera:

Camera Included

Orientation:

Landscape

$1587.95

KDT7-0024

Firebird Kiosk. Landscape. Android 8.1. WiFi. 2D Imager with Easy Drivers License Parsing. Camera.

Camera:

Camera Included

DL Parsing:

DL Parsing

Orientation:

Landscape

$1678.95

KDT7-1012

Firebird Kiosk. Portrait. Android 8.1. WiFi. 2D Imager.

Orientation:

Portrait

$1542.45

KDT7-1014

Firebird Kiosk. Portrait. Android 8.1. WiFi. 2D Imager with Easy Drivers License Parsing.

DL Parsing:

DL Parsing

Orientation:

Portrait

$1633.45

KDT7-1022

Firebird Kiosk. Portrait. Android 8.1. WiFi. 2D Imager. Camera.

Camera:

Camera Included

Orientation:

Portrait

$1587.95

KDT7-1024

Firebird Kiosk. Portrait. Android 8.1. WiFi. 2D Imager with Easy Drivers License Parsing. Camera.

Camera:

Camera Included

DL Parsing:

DL Parsing

Orientation:

Portrait

$1678.95

Shop Firebird Self-Service Kiosk Accessories

ACC-0794

Monarch+/Firebird Adjustable Angle Mounting Bracket. 10° or 15° Angle. Bracket includes kiosk mounting hardware.

$130.20

PWR-7150US

AML Firebird & Monarch+ Kiosk 5V DC Power Supply (Required To Power Device When Not Using PoE)

$79.80

ACC-0759

AML Monarch+/Firebird 15° Quick Mount Wall Bracket. Bracket includes kiosk mounting hardware.

$52.37

SVC-EWPKDT7

AML Firebird Kiosk 3 Year Extended Warranty. Covers the failure of internal components & external components as a result of normal wear and tear. Four business day turn-around.

$236.25
