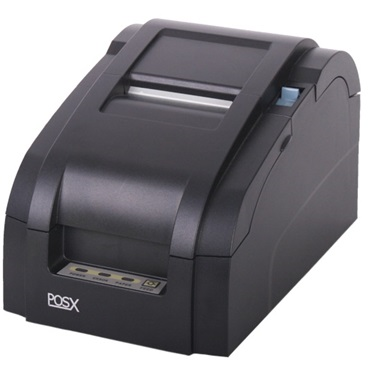

The POS-X EVO Impact receipt printer is built to withstand the demands of even rough business environments, such as kitchens, dry cleaners, or anywhere where the temperature could vary significantly. Formerly the XR210, This unique impact printer features the versatility, durability, and ease of use ideal for a variety of installations.

Like the name suggests, the EVO Impact is a dot-matrix impact printer, printing temperature-resistant receipts at 5 lines per second. For credit slips or invoicing, the EVO Impact can print one original and up to two copies at the same time. the printer is available either with an autocutter or a tear bar, giving you options on adding convenience or extending printer lifespan.

POS-X built the EVO Impact to provide the long lasting reliability necessary to maximize uptime at your business. The printhead rated at 120 million characters printed and the optional auto-cutter's lifespan of 1.5 million cuts ensure many years of fantastic service. POS-X ships the printer with a 3-year, 2-Day turnaround warranty standard, with additional rapid replacement warranties available.

POS-X Impact
Receipt Paper

Add To Cart

Features

  • Available with or without an autocutter
  • Can print 1 original and up to two copies at the same time
  • Supports Epson, Citizen, and Star Emulations
  • USB, Serial, Parallel, and Ethernet interface available
  • Driver support for Windows XP, 2000, Vista, and OPOS
Dimensions
6.14W x 9.57D x 5.91H in
Weight
5.4 lbs
Color Options
Black
Interface
USB, ethernet, RS232, parallel
Print Speed
5 lines / sec
Print Method
9-pin, serial impact dot-matrix
Print Resolution
160 x 160 dpi
Emulation
Epson / Citizen / Star
OPOS Compatible
Yes
Character/Line
40/33
Graphics Printing
Yes
Operating Temperature
41°F - 104°F (5°C - 40°C)
MCBF
18,000,000 Lines
Print Head Life
120 Million characters
Auto Cutter Lifespan
1 million cuts
Paper Dimensions
3 in (76.2 mm) wide, 3 in (76.2 mm) maximum diameter
Paper Thickness
0.002 to 0.005 in (0.065 mm to 0.13 mm)
Two Color Printing Capabilities
Yes - black, purple or black/red
Sensors

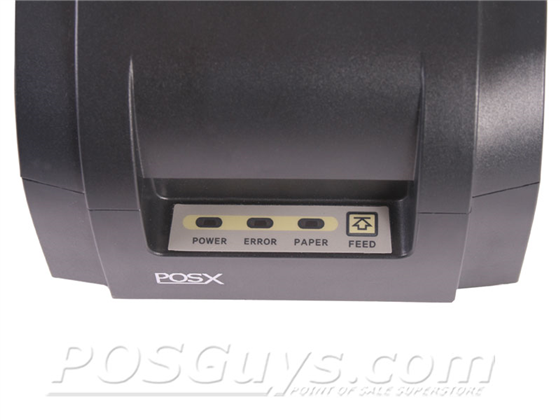

Status LED lights - error, nearly out of paper, out of paper, power, cover open, paper jam
Wall Mountable
No
Auto Cutter
Yes - partial or full cut option, Method: Guillotine/Tear Bar
Mac Compatible
No
Software Included
Drivers downloadable
In The Box
Printer, users manual, 1 roll paper, power adapter, interface cable, printer ribbon
Data Sheet
Download
User Manual
Download
Ethernet Configuration Utility
Download
OPOS Driver
Download
Windows Driver
Download

Shop EVO Impact Windows Models

EVO-PK2-1AP

EVO Impact Receipt Printer, Black With Autocutter, Interface Cable, Parallel Interface

Color:

Black

Interface:

Parallel

Autocutter:

Yes

$247.43

912LB470200533

EVO Impact Receipt Printer (Ethernet) (Old POS-X part number EVO-PK2-1AE)

Interface:

Ethernet LAN

$378.32

EVO-PK2-1BU

EVO Impact Receipt Printer, Black With Tear Bar, Interface Cable, USB Interface

Color:

Black

Autocutter:

No

Interface:

USB

$-1.00

EVO-PK2-1BS

EVO Impact Receipt Printer, Black With Tear Bar, Interface Cable, Serial Interface

Color:

Black

Autocutter:

No

Interface:

Serial

$-1.00

EVO-PK2-1BP

EVO Impact Receipt Printer, Black With Tear Bar, Interface Cable, Parallel Interface

Color:

Black

Autocutter:

No

Interface:

Parallel

$-1.00

EVO-PK2-1BE

EVO Impact Receipt Printer, Black With Tear Bar, Interface Cable, Ethernet Interface

Color:

Black

Interface:

Ethernet

Autocutter:

No

$-1.00

912LB470100133

EVO Impact Receipt Printer (Serial port) (Old POS-X part number EVO-PK2-1AS)

Interface:

RS-232 Serial

$269.84

912LB470100233

EVO Impact Receipt Printer (USB) (Old POS-X part number EVO-PK2-1AU)

Interface:

USB

$296.95

912LB470100433

EVO Impact Receipt Printer (Parallel port) (Old POS-X part number EVO-PK2-1AP)

Interface:

Parallel

$269.84

EVO-PK2-1AU

EVO Impact Receipt Printer, Black With Autocutter, Interface Cable, USB Interface

Color:

Black

Interface:

USB

Autocutter:

Yes

$272.29

EVO-PK2-1AS

EVO Impact Receipt Printer, Black With Autocutter, Interface Cable, Serial Interface

Color:

Black

Interface:

Serial

Autocutter:

Yes

$247.43

EVO-PK2-1AE

EVO Impact Receipt Printer, Black With Autocutter, Interface Cable, Ethernet Interface

Color:

Black

Interface:

Ethernet

Autocutter:

Yes

$346.89

Shop EVO Impact Accessories

ARTFITT967

2 Year Warranty Extension (May be purchased at any point during product's warranty period) (Previously ZWE-CRW)

$28.00

28102

6 Foot USB Printer Cable: Black, A to B

$13.48

XWP-2P90-ADD

3" Wide x 90' Receipt Paper. 2-Ply White/Yellow. Case of 50 Rolls.

$105.00

41000000087100

POS-X Ethernet Interface Card, For EVO Impact Printers

$96.69

41000000087400

POS-X USB Interface Card, For EVO Impact Printers

$49.74

963GE020000834

Power supply for all POS-X printers (3 pin) (Old POS-X part number XR-POWER)

$47.53

XWP-I165-10-ADD

Promo 10 Pack of 3" Wide Receipt Paper. 150' Long. 1-Ply White. Ground Shipping Only. One Per Customer.

$25.00

XWP-2P90-10-ADD

Promo 10 Pack of 3" Wide x 90' Receipt Paper. 2-Ply White/Yellow. Ground Shipping Only. One Per Customer.

$25.00

ERC-38BX10

Black Impact Printer Ribbon. 10-Pack. Compatible With TM-U220, TM-U220II, TM-U300, or POS-X Evo Impact.

$35.00

ERC-38BRX10

Black-Red Impact Printer Ribbon. 10-Pack. Compatible With TM-U220, TM-U220II, TM-U300, or POS-X Evo Impact.

$35.00
