Elo TouchSystems EloPOS Pack 2

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

High Performance Computer.

The EloPOS Pack 2 delivers a high performance enterprise-grade computing solution in a sleek, compact form factor. Backed by the security and infrastructure of an Intel-based system with the speed of 14th gen Raptor Lake processors, the EloPOS Pack 2 provides the power you need to run your business.

Elo Backpack Prominently displaying peripheral ports.

Small footprint for compact spaces.

Prupose-built to accommodate compact spaces, the EloPOS 2 boasts a smaller footprint in both size and weight than typical commerical-grades PC's.

Photo of the back of the unit, slightly angled.

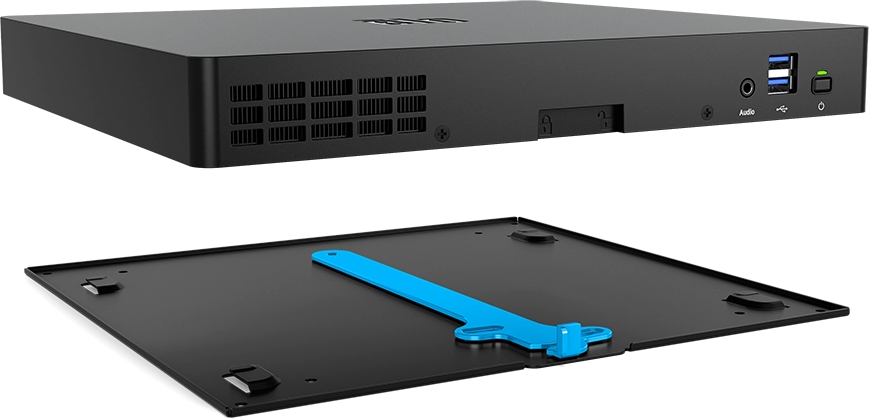

Unit floating over mounting plate, showcasing how they attach.

Securely mount with a bracket.

Easily secure the EloPOS Pack 2 to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.

The perfect pairing for point of sale

Easily pair the EloPOS Pack 2 with your monitor of choice to create the perfect solution for your self-checkout and POS lanes.

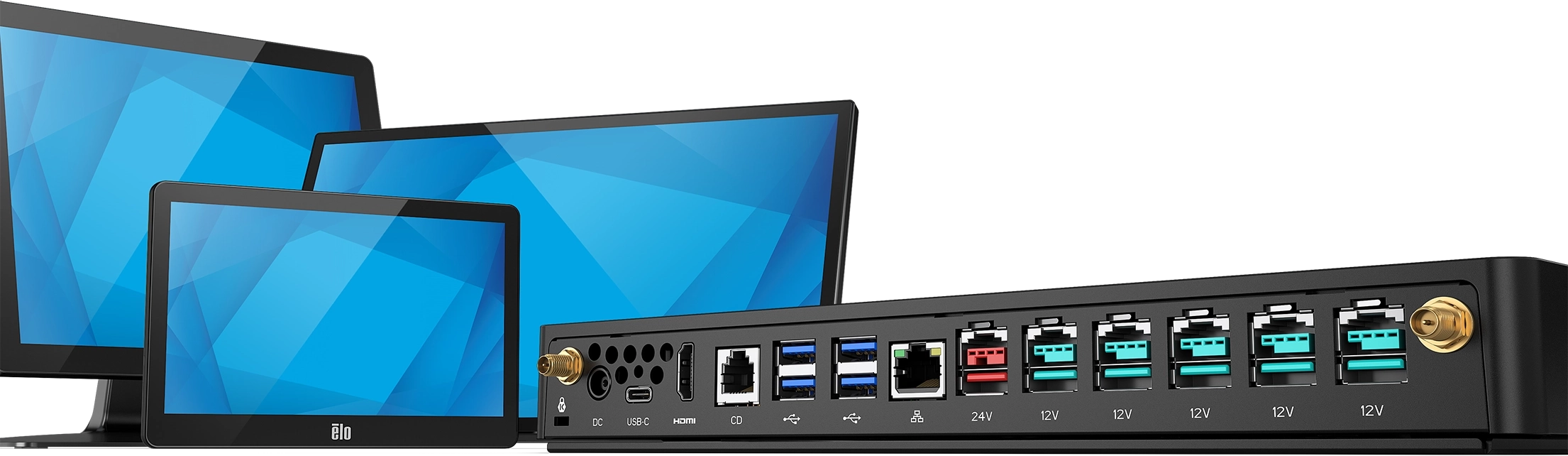

Angled photo exposing peripheral ports next to select compatible Elo displays

Connectivity for your accessories

With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

  • USB-C full featured
  • Gigabit LAN
  • 6x USB 3.0
  • HDMI
  • 1x 24V Powered USB
  • 5x 12V Powered USB
  • 12V/24V Cash Drawer
  • 3.5 mm headset jack

Expand possibilities with AI processing.

Experience unparalleled AI processing power with the EloPOS Pack 2, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with select i7 processor models. (coming soon)

Reliable security and performance.

Built with Intel 14th generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the EloPOS Pack 2 delivers the dependability businesses need.

Support for Linux

For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Quality that is built to last.

Elo engineers each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Processor
  • Intel® Celeron® Processor G6900T
  • Intel Core™ i3- 14100T Processor
  • Intel Core i5- 14500T Processor
  • Intel Core i7- 14700T Processor
  • Chipset
    Intel Q670 Express
    Video
  • Intel UHD Graphics 710
  • Intel UHD Graphics 730
  • Intel UHD Graphics 770
  • BIOS
    AMI
    Memory
  • 8GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum1 on 2 slots)
  • 8GB or 16GB 5600MHz DDR5 SODIMM on 1 of 2 slots (Expandable to 64GB max1 on 2 slots)
  • 16GB 5600MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum1 on 2 slots)
  • Storage
  • 128GB M.2 PCIe (NVMe) SSD3, 80 TBW
  • 256GB M.2 PCIe (NVMe) SSD3, 160 TBW
  • 256GB M.2 PCIe (NVMe) SSD3,160 TBW or 512GB M.2 PCIe (NVMe) SSD3, 320 TBW
  • 256GB M.2 PCIe (NVMe) SSD3,160 TBW
  • Operating Systems
    No Operating System, Microsoft Windows 10 IoT Enterprise LTSC 64-bit
    Languages
    Windows 10 – 36 Language groups
    I/O Ports
    1x HDMI port, 1x LAN RJ45 (Gigabit), 2x USB 3.0 (Front side), 4x USB 3.0 (Rear side), 1x 24V & 5x 12V Powered USB, 1x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch), 1x Full-function USB-C (Power up to 27W, USB 3.0, Display Port), 1x 3.5 mm headset jack
    Wireless
    802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
    Antenna
    2T2R design with External SMA connector
    Bluetooth
    Bluetooth 5.3
    RAID
    Intel Volume Management Device (VMD) technology for select SKUs
    TPM
    TPM 2.0
    AMT
    Intel Active Management Technology (AMT) for i5, i7 only.
    Real Time Clock
    Replaceable CR2450 lithium metal battery for clock
    Power Supply
    External 24VDC universal-type power supply brick, AC input voltage: 100-240 VAC, Input frequency: 50-60 Hz, Maximum output power: 180W
    Power Consumption
    ON Celeron: 35W (8GB DIMM/128GB SSD). Don’t exceed 145W for all peripherals load.; ON i3: 63W (8GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; ON i5: 62W (8GB DIMM/512GB SSD). Don’t exceed 118W for all peripherals load.; ON i7: 63W (16GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; SLEEP: <3W; OFF BIOS EUP Disable: <2.5W; OFF BIOS EUP Enabled: < 0.5W
    Mounting Options
    Bracket mounts to table with screws, System slides forward to engage hooks on bracket
    Other Features
    Serviceable internal components. Kensington Nano Security Slot. Kensington lock slot (Standard Size).
    Upgrade Options
    8GB 5600MHz DDR5 SO-DIMM – E466053, 16GB 5600MHz DDR5 SO-DIMM – E466237 , 32GB 5600MHz DDR5 SO-DIMM – E466430, M.2 PCIe (NVMe) 128GB SSD – E466613, M.2 PCIe (NVMe) 256GB SSD – E466803
    Dimensions
    10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm
    Shipping Box Dimensions
    14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm
    Weight
    Unpackaged: 5.76 lbs / 2.6 kg; Packaged: 10.14 lbs / 4.6 kg
    Temperature
    Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F)
    Humidity (non-condensing)
    Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature)
    Compliance
    Energy Star 8.0 certified configurations available
    Warranty
    3 years
    Extended Warranty
    4 year coverage - Elo P/N: E896120 ; 5 year coverage - Elo P/N: E896322
    MTBF
    50,000 hours demonstrated
    What’s in the box
    EloPOS Pack 2, North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch), EU Power Cord (1800+/-50mm), Power Adapter – 180W, USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch), HDMI cable (1800+/-50mm), (6 ft +/- 1 inch), USB cable (1800+/-50mm), (6 ft +/- 1 inch), 2x SMA Antenna, QIG
    EloPOS Pack 2 Spec Sheet
    Download
    EloPOS Pack 2 User Manual
    Download

    Shop EloPOS Pack 2 Models

    E262377

    EloPOS Pack 2, Win 10, i5, 8GB RAM, 256GB SSD

    Storage:

    256GB SSD

    Memory:

    8GB RAM

    Processor:

    i5

    OS:

    Win 10

    $2053.07

    E263537

    EloPOS Pack 2, Win 10, i7, 16GB RAM, 256GB SSD

    Memory:

    16GB RAM

    Storage:

    256GB SSD

    Processor:

    i7

    OS:

    Win 10

    $2568.00

    E262004

    EloPOS Pack 2, Win 10, i3, 8GB RAM, 256GB SSD

    Storage:

    256GB SSD

    Memory:

    8GB RAM

    Processor:

    i3

    OS:

    Win 10

    $1744.10

    E198884

    EloPOS Pack 2, NO OS, Celeron, 8GB RAM, 128GB SSD

    OS:

    No OS

    Storage:

    128GB SSD

    Memory:

    8GB RAM

    Processor:

    Celeron

    $1252.00

    E261603

    EloPOS Pack 2, WIN 10, i5, 8GB RAM, 256GB SSD

    Storage:

    256GB SSD

    Memory:

    8GB RAM

    Processor:

    i5

    OS:

    Win 10

    $1355.00

    E261806

    EloPOS Pack 2, NO OS, i3, 8GB RAM, 256GB SSD

    OS:

    No OS

    Storage:

    256GB SSD

    Memory:

    8GB RAM

    Processor:

    i3

    $1538.13

    E262189

    EloPOS Pack 2, No OS, i5, 8GB RAM, 256GB SSD

    OS:

    No OS

    Storage:

    256GB SSD

    Memory:

    8GB RAM

    Processor:

    i5

    $1847.09

    E262561

    EloPOS Pack 2, No OS, i5, 16GB RAM, 256GB SSD

    OS:

    No OS

    Memory:

    16GB RAM

    Storage:

    256GB SSD

    Processor:

    i5

    $1950.08

    E262761

    EloPOS Pack 2, Win 10, i5, 16GB RAM, 256GB SSD

    Memory:

    16GB RAM

    Storage:

    256GB SSD

    Processor:

    i5

    OS:

    Win 10

    $2156.05

    E262957

    EloPOS Pack 2, No OS, i5, 8GB RAM, 512GB SSD

    OS:

    No OS

    Storage:

    512GB SSD

    Memory:

    8GB RAM

    Processor:

    i5

    $1950.08

    E263167

    EloPOS Pack 2, Win 10, i5, 8GB RAM, 512GB SSD

    Storage:

    512GB SSD

    Memory:

    8GB RAM

    Processor:

    i5

    OS:

    Win 10

    $2156.05

    E263352

    EloPOS Pack 2, No OS, i7, 16GB RAM, 256GB SSD

    OS:

    No OS

    Memory:

    16GB RAM

    Storage:

    256GB SSD

    Processor:

    i7

    $2310.00
