Elo TouchSystems Elo Pay 10 inch
Description
Specifications
Download

Elo TouchSystems Elo Pay 10 inch

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8
small product image9
small product image10

Elo Pay 10" integrated payment solution. Featuring a 10.1-inch FHD scratch-resistant touch display, Android 12 OS, and Qualcomm SD660 processor, the Elo Pay 10" delivers unmatched quality, speed, and reliability. With advanced EMV and NFC technologies complemented by PCI/PTS 6.2 certified pin-on-glass functionality, the Elo Pay system simplifies your POS operations, offering efficiency and security for retailers and merchants.

Enjoy the convenience of integrated payment.

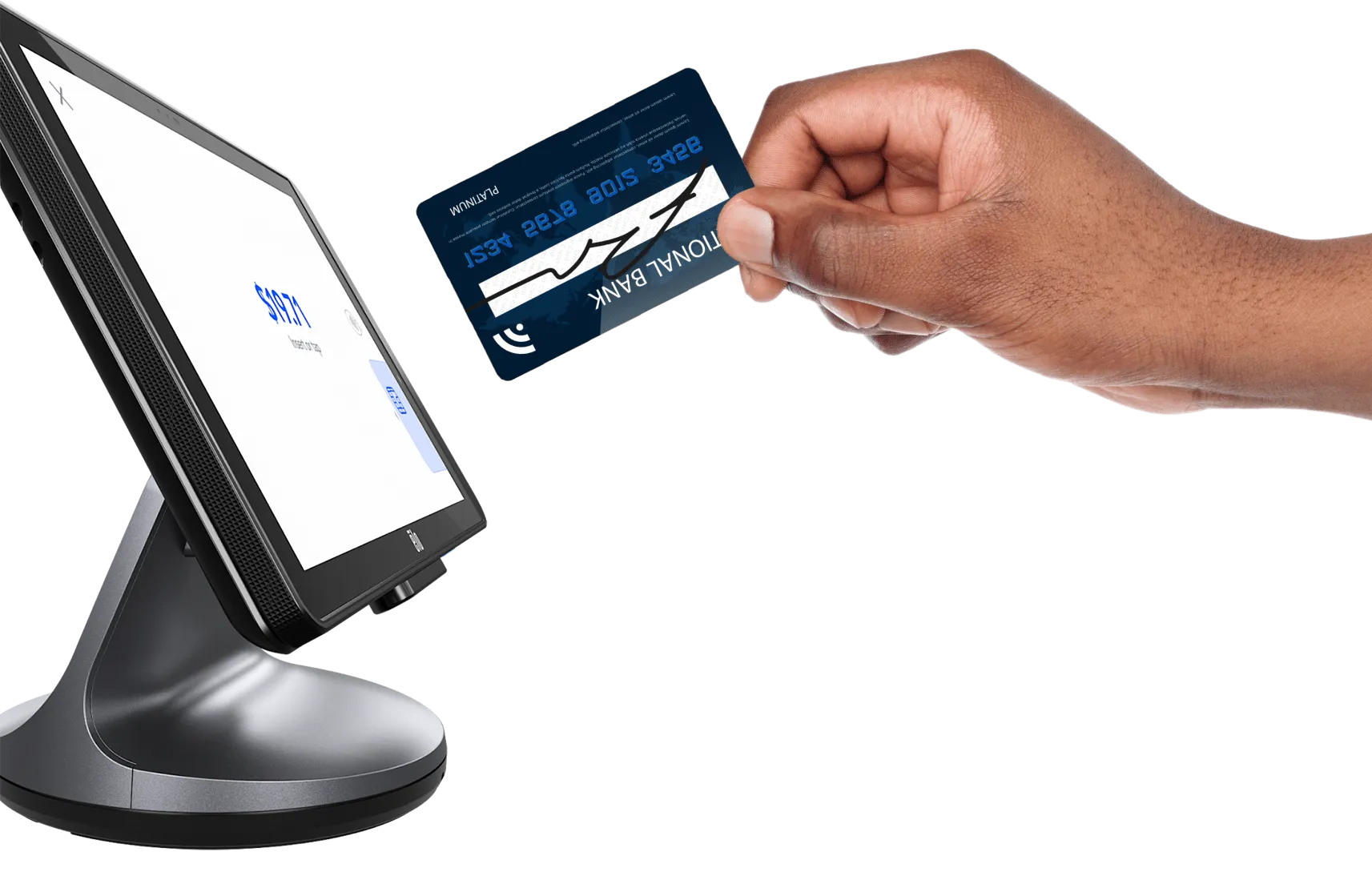

Whether your customers have a physical card or contactless via their mobile phone, the Elo Pay 10" POS Terminal accepts all forms of payment.

  • EMV - Insert cards with chips.
  • NFC - Tap with contactless payments.
  • Pin on Glass - Enter your pin directly on the screen.
Android Device Management via their MDM Dashboard

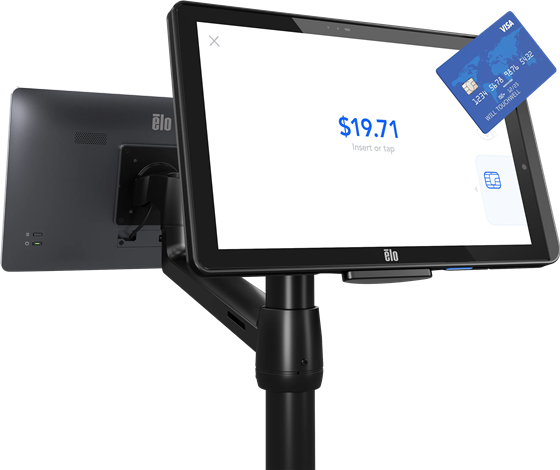

Pole Display Setup with rear Display. Card floats in front of screen indicating tap to pay.

Create a customer-facing interactive payment terminal.

Engineered for commercial use.

The fully integrated Elo Pay 10" POS system is purpose-built to endure commercial environments with features including:

  • Chemically Strengthened Glass
  • IP54 Rating
  • 50,000 MTBF

Get peace of mind with EloCare.

From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.

  • Advance Unit Replacement
  • Accidental Damage Protection
  • Extended Warranty
  • OS 360

Quality that is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Enclosure Color
Black
Processor
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)
4GB
Storage
64GB
Expansion Options
MicroSD card supports up to 1TB SDXC
OS
Android 12 with GMS (AOSP Capable) <br> Planned upgrade to Android 14 available with OS 360 subscription
Display
10.1" Optically Bonded FHD
Touchscreen
Projective capacitive with Corning Gorilla Glass <br>Water rejection <br>Anti-Fingerprint Coating
Sensor
Light sensor (automatically adjust backlight brightness) <br>Accelerometer
Resolution
1920 x 1200
Brightness (typical)
500 nits
Contrast Ratio
900:1
I/O Ports
USB Type-C: Support display and data
Camera
Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch) <br>Front Camera: 5MP Fixed-Focus with Face Authentication
Payment
EMV Contactless ISO 14443-A/B, MiFare, ISO-18092 <br>EMV Chip Card Reader (chip and pin-on-glass)
Certifications
PCI-PTS 6.2 (PCI Approval Number: 4-30551) EMV L1 & L2 Visa PayWave Mastercard PayPass Amex Express Pay Discover D-PAS EFTPOS JCB Unionpay Quickpass Interac Mastercard TQM Apple Pay™ Google Pay™ Samsung Pay™
Wireless
IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO
Bluetooth
Bluetooth 5.0
LED
1x combination Green/Amber LED for user programmable <br>1x combination Blue/Red LED for scan, error, or user programmable
Keyboard
On screen keyboard
Audio
Dual microphone with noise cancellation <br>Dual speakers
Buttons
2x Programmable buttons <br>Power button <br>Volume up/down buttons
Dimensions
E369331: 10.06" x 8.45" x 7.87" / 255.5 mm x 214.7 mm x 200 mm <br>E931600: 10.06" x 6.38" x 0.54" / 255.5 mm x 162 mm x 13.7 mm
Shipping Box Dimensions
E369331: 14.06" x 10.84" x 11.30" / 357 mm x 275 mm x 287 mm <br>E931600: 12.68" x 8.54" x 2.91" / 322 mm x 217 mm x 74 mm
Weight (Unpackaged)
E369331: 2354g <br>E931600: 625g
Weight (Packaged)
E369331: 5550g <br>E931600: 1307g
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) - Class B <br>cUL, IC (Canada) <br>CB (International safety) <br>CE (Europe) - Class B
ESD
Class B: 8kV contact, 15kV air
Warranty
1-year
OS Support
Bi-monthly Android security updates available with Elo OS 360
What's in the Box
Elo Pay 10" POS Dock and Base Plate (E369331 only) USB Type C Charger (US. EU and UK plugs) 1.8m USB-C Cable (E931600 only) Quick Install Guide
Optional Accessories
Stylus - Elo P/N: E120625 Large Hub -Elo P/N: E815235 Small Hub - Elo P/N: E815044 Fixed VESA Mount - Elo P/N: E119228
Elo Pay 10 inch
Download

Shop Elo Pay 10 inch Windows Models

E369331

Elo Pay 10-inch, Android 12 with GMS, 1920 x 1080 Display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Integrated Payment (NFC, EMV), 5MP Front Camera, EloView Compatible, Black, Rotating POS stand

$1611.84

E931600

Elo Pay 10-inch, Android 12 with GMS, 1920 x 1080 Display, Qualcomm 660 Octa-Core Processor, 4GB RAM, 64GB Flash, Integrated Payment (NFC, EMV), 5MP Front Camera, EloView Compatible, Black

$1209.22

Shop Elo Pay 10 inch Accessories

E120625

ELO M100 STYLUS

$46.44

E815044

Elo small hub for Elo Pay 7-inch and Elo Pay M100

$288.17

E119228

Elo Pay M100 Fixed VESA mount

$140.44
