Elo TouchSystems E-Series 3

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

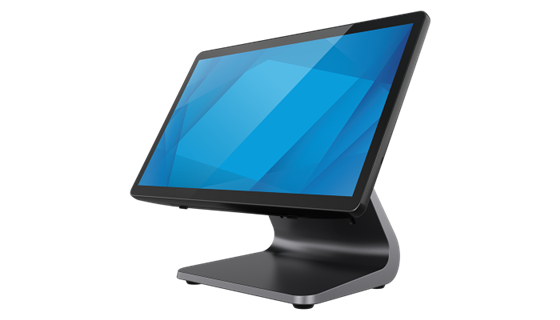

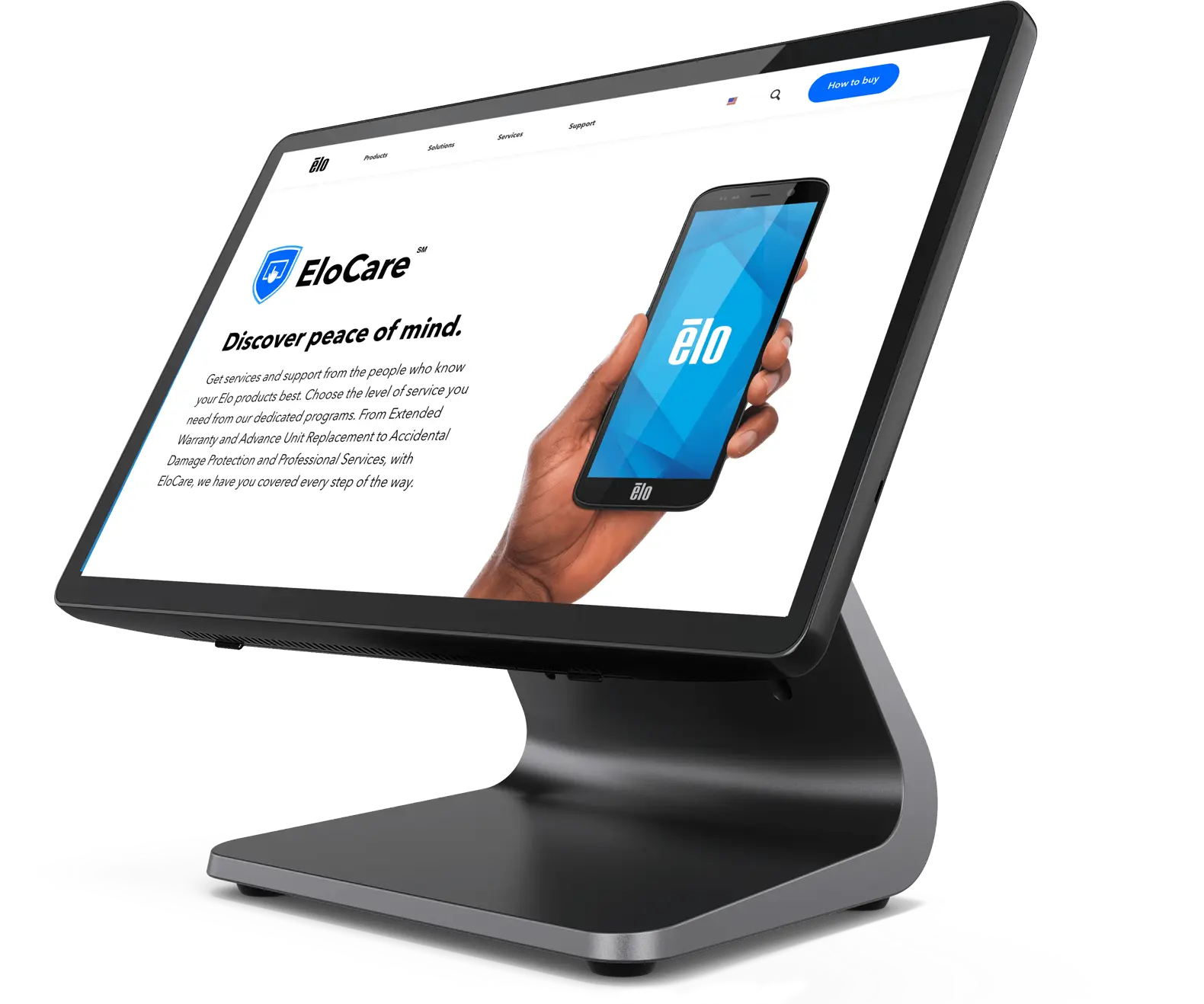

E-Series 3 with Intel Touchscreen Computer.

Purpose-built for point of sale, the E-Series 3 offers a 15.6-inch touchscreen display, powerful Intel processor and integrated connectivity for all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.

Power, Video & Touch in a Single Cable

Add a customer-facing display.

The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

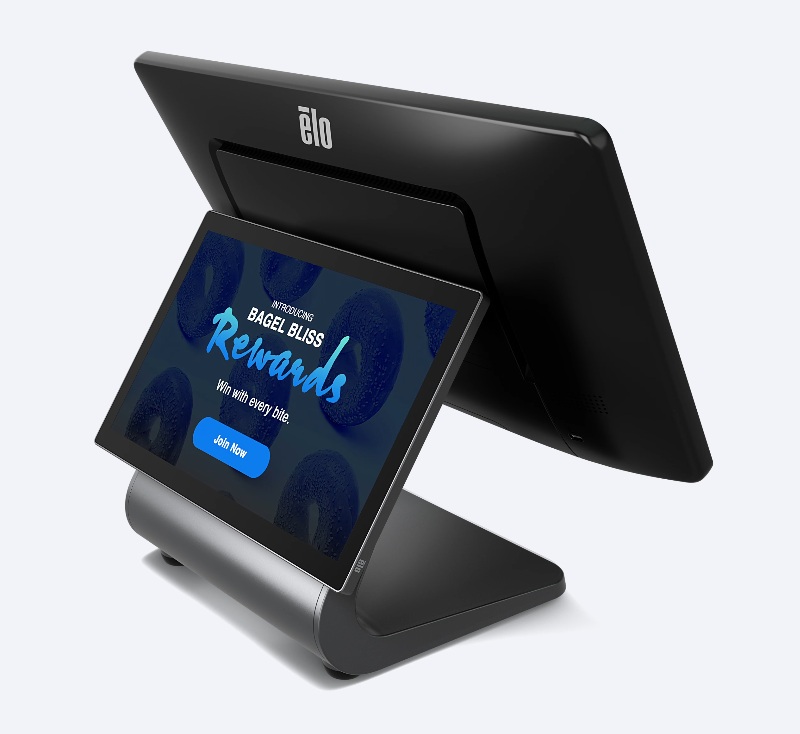

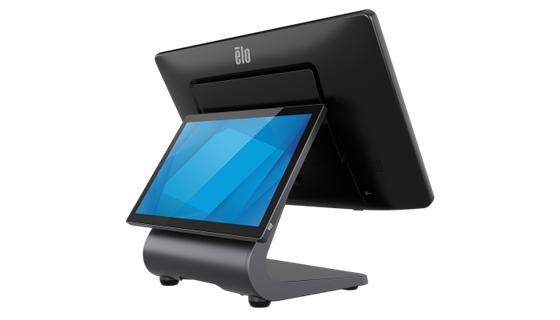

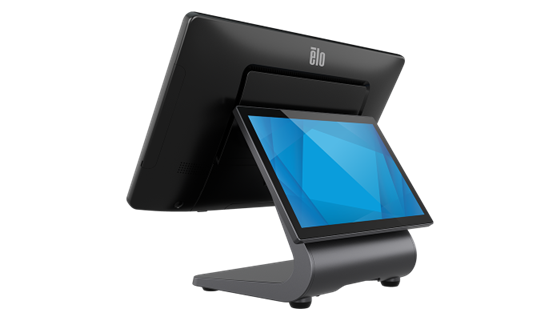

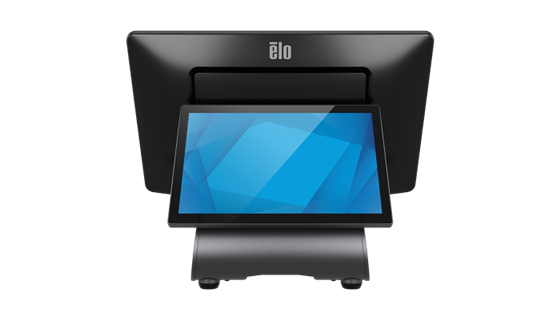

Unit turned around with Customer Display attache
Unit angled to prominently show MSR and Scanner attachments.

Expand with Elo Edge Connect.

Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Angled photo exposing peripheral ports.

Enhanced connectivity for all your accessories.

  • Chemically Strengthened Glass
  • IP54 Rating
  • 50,000 MTBF
  • Chemically Strengthened Glass
  • IP54 Rating
  • 50,000 MTBF

Support for Linux

For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Quality that is built to last.

Elo Engineers each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Enclosure Color
Black
Active Display Area (W x H)
13.55" x 7.62" / 344.2mm x 193.5mm
Display
15.6" / 396.24 mm diagonal, active matrix TFT LED LCD
Touch Technologies
TouchPro® PCAP with up to 10 touches
Aspect Ratio
1920 x 1080 @ 60Hz
Number of Colors
262k
Brightness (typical)
LCD panel: 200 nits, TouchPro PCAP: 170 nits
Viewing Angle (typical)
Horizontal: 89°/89° or 178° total / Vertical: 89°/89° or 178° total
Contrast Ratio (typical)
500:1
Response Time Total (typical)
25 msec
Processor
Intel Processor N97 (6M Smart Cache, up to 3.60 GHz)
Memory (RAM)
8GB 4800MHz DDR5 SO-DIMM on 1 slots (Expandable to 16GB maximum1 on 1 slots)
Storage
128GB M.2 PCIe (NVMe) SSD³, 80 TBW <br>256GB M.2 PCIe (NVMe) SSD³, 160 TBW <br>³GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
Operating System Options
No Operating System <br>Microsoft Windows 11 IoT Enterprise LTSC 64-bit 2024
Languages
Windows 11 - 36 Language groups
TPM
Intel® Platform Trust Technology (Intel® PTT)
Video
Intel UHD Graphics
BIOS
AMI
Wireless Connectivity
802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz; Bluetooth 5.3
I/O Ports
1 x RJ45 LAN (Gigabit) Port <br>2 x USB 3.0 Ports <br>2 x USB 2.0 Ports <br>2 x Micro USB 2.0 Ports for Elo Edge Connect peripherals(Right/Bottom) <br>2 x RJ45 Serial Port <br>1 x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting) <br>1 x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out) <br>1 x Audio Port (3.5 mm headset jack)
Speakers
Two 2W internal speakers
Control Buttons
Power Button
Power
External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W
Max Power Consumption
On: <30W; Sleep: < 2W; Off: < 0.5W
Dimensions
14.56" x 7.19" x 11.75" / 370.4 mm x 182.6 mm x 298.4 mm
Shipping Dimensions
18.3" x 10.3" x 14.8" / 465 mm x 262 mm x 376 mm
Weight
Unpackaged: 7 lbs / 3.2 kg / Packaged: 11 lbs / 5.0 kg
Temperature
Operating: 0°C to 35°C (32°F to 95°F); Storage: -20°C to 60°C (-4°F to 140°F) <br>The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition. For non-OS SKUs, recommend installing the Elo optimize TDP tool for better performance.
Humidity (non-condensing)
Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature)
Real-Time Clock
Replaceable CR2032 lithium metal battery for clock
MTBF
50,000 hours demonstrated
Sealability
Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Other Features
Serviceable internal components; Kensington lock
Mounting Options
75mm VESA mount
Warranty
3-year warranty
Extended Warranty
4 yr - Elo P/N: E819598; 5 yr - Elo P/N: E819795; 3 yr + AUR - Elo P/N: E820186; 4 yr + AUR - Elo P/N: E820388; 5 yr + AUR - Elo
What’s in the box
E-Series 3, North America Power Cord, EU Power Cord, Power Adapter – 90W, Series Port Cable RJ-45 to DB-9, Quick Installation Guide (QIG), Cable tie
E-Series 3 Spec Sheet
Download
E-Series 3 User Manual
Download

Shop E-Series 3 Windows Models

E849902

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

WiFi:

WiFi Included

Operating System:

Windows 11

$1127.52

E849902-REAR10

Rear Display, 1004LS 10.1-inch Wide LCD Monitor, HD 1280 x 800, USB Controller, Anti-glare, Zero-Bezel, No Stand, USB-C Input, Gray (E967935)

$436.03

E153259

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 16GB RAM, 256GB SSD, Black, With Stand

Memory & Storage:

16GB RAM, 256GB SSD

WiFi:

WiFi Included

Operating System:

Windows 11

$1313.17

E849711

E-Series 3 15.6" All-in-One, Win 11, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, NO WIFI, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

WiFi:

No WiFi

Operating System:

Windows 11

$1051.32

E850312

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, NO WIFI, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

Operating System:

No OS

WiFi:

No WiFi

$935.53

E850098

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 8GB RAM, 128GB SSD, Black, With Stand

Memory & Storage:

8GB RAM, 128GB SSD

Operating System:

No OS

WiFi:

WiFi Included

$993.43

E153661

E-Series 3 15.6" All-in-One, No OS, 1920x1080 FHD, N97 CPU, 16GB RAM, 256GB SSD, Black, With Stand

Memory & Storage:

16GB RAM, 256GB SSD

Operating System:

No OS

WiFi:

WiFi Included

$1196.05

Shop E-Series 3 Accessories

E001002

MSR Encryptable Peripheral Kit for X-series AiO, 2002L Touch Screen Monitors - MRS Only, Non Returnable

$151.14

E375343

EMV Cradle for MagTek eDynamo

$92.29

E586981

EMV Cradle for Ingenico RP457c (Audio Jack, BT, USB)

$90.00

E710930

EMV Cradle for Ingenico RP457c (BT, USB)

$92.29

E134286

Edge Connect Fingerprint Scanner

$263.49

E384627

Edge Connect 2D Barcode Scanner, SE4720, Black

$382.53

E644767

Edge Connect Status Light, Micro USB, RGB LED lights offer various color illumination

$73.57

E673037

Edge Connect RFID Reader

$361.13

E245047

Edge Connect 2D Barcode Scanner, SE4107, Black

$279.54

E134699

Edge Connect 3D Camera

$477.49

E201494

Edge Connect 2D Webcam

$220.69
