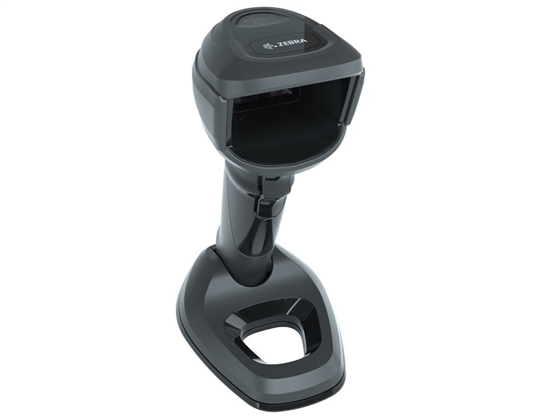

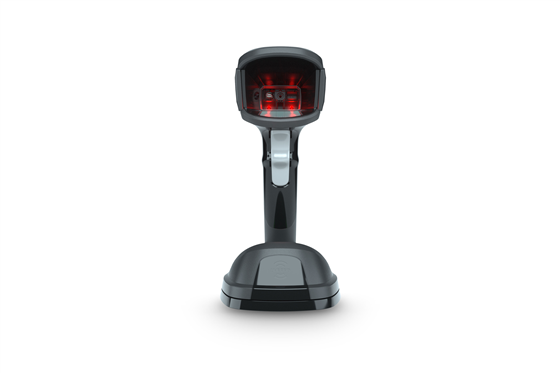

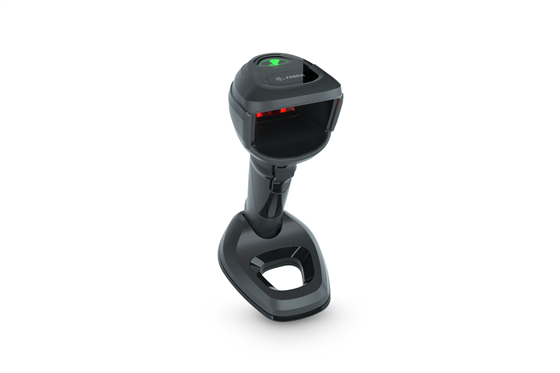

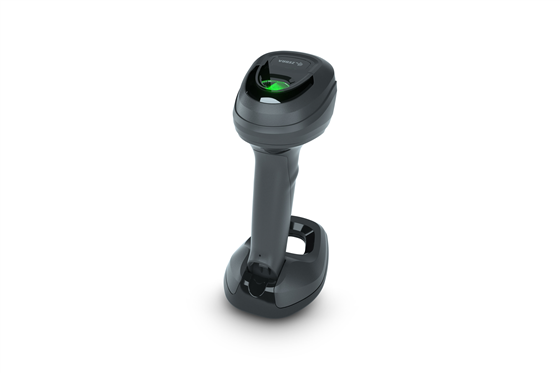

Zebra DS9908

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
The Zebra DS9908 brings mobility and stability to any retail or convenience store location, combining the best of Zebra's current-gen scanning technologies and preparing you for the future of customer service and functionality.

Scan barcodes from your sale items, read coupons off of a customer's phone, check an ID for verification, or simply check something price, the DS9908 does it all right from your countertop or in the palm of your hand. Quick scanning, versatile usage, and a durable chassis come together to give you a device that will perform for years to come. Using Multi-Code Data Formatting, the DS9908 can take in multiple barcodes in one scan and transmit them into your required fields. High-motion tolerance means you don't have to fight to keep up with a quick-moving conveyor belt or a long line of items needing to be scanned, making checkouts faster and more convenient for you and your customers. Right out of the box this scanner family is set to work with 97 different international keyboards, is backward compatible with the previous DS9808 cables, is ready for RFID implementation, and can be managed in a few minutes with rapid deployment configuration barcodes with 123Scan. You can even keep an eye on data and performance of your scanners from multiple locations with Zebra's Scanner Management Service (a no-cost addition to your fleet).

For the most promising use of this new scanner, we suggest it be used in a grocery or convenience store setting, where one is attempting to save money or counter space by not installing a combination scanner/scale. With the hybrid nature of the DS9908, picking up the scanner automatically takes you from presentation mode to the more traditional scanning mode for off-the-counter uses. You can quickly go from scanning items on your counter to scanning heavier, hard-to-reach items still in or under the customer's cart.

Features
  • Able to scan 1D, 2D, and Digimarc codes with OCR functions
  • USB/ RS-232 Serial, and Keyboard Wedge interfaces available
  • Drivers License Parsing available, reads damaged and poorly-printed barcodes
  • Fast configuration of multiple scanners with 123Scan
  • ScanSpeed Analytics help keep an eye on how your scanner is performing
  • Dimensions
    8.0 in. H x 3.7 in. W x 5.2 in. D (20.3 cm H x 9.4 cm W x 13.2 cm D)
    Weight
    11.6 oz / 330.0 g
    Interfaces Available
    USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
    Scan Method
    1280 x 800 pixel Imager, Circular 617nm Amber LED Aiming Pattern
    Decoding Capabilities
    Standard 1D, 2D, Digimarc, and OCR (OCR-A, OCR-B, MICR, US Currency)
    Mobility/Range
    Corded
    Motion Tolerance
    Up to 240 in./610 cm per second for 13 mil UPC in optimized mode
    Reading Angle
    Roll: 360°<br>Pitch: ±60°<br>Skew: ±60°
    Indicators
    Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume)
    Image Capture
    Images taken can be exported as Bitmap, JPEG or TIFF
    Mobile Phone Scanning Capabilites
    Yes
    Drivers License Data Parsing
    Options Available
    Operating Temperature
    32.0° to 122.0° F / 0.0° to 50.0° C
    Drop Specification
    Multiple drops at 5.0 ft./1.5 m to concrete<br> 2,000 tumbles
    Ambient Light (Max)
    0 to 10,000 Foot Candles / 0 to 107,600 Lux
    Warranty
    5-Year Manufacturer Warranty
    DS9908 Enable Grid Matrix
    Download
    DS9908 Spec Sheet
    Download

    Shop DS9908 Windows Models

    DS9908-SR4U2100AZW

    DS9908-SR USB Kit: Scanner &amp; Shielded USB Cable

    Color:

    Black

    Imager:

    Standard Range

    Interface:

    USB (w/Cable)

    $445.50

    DS9908-SR4R0110AZW

    DS9908-SR Serial Kit: Scanner, Serial Cable &amp; Power Supply (USA, CA, MX, JP, TW)

    Color:

    Black

    Interface:

    Serial (w/Cable)

    Imager:

    Standard Range

    $468.75

    DS9908-SR00004ZZWW

    DS9908-SR - Scanner Only — Order Cable Separately

    Color:

    Black

    Interface:

    No Cable

    Imager:

    Standard Range

    $423.75

    DS9908-HDWU2104AZW

    DS9908-HD USB Kit: HD Scanner &amp; Shielded USB Cable

    Color:

    Black

    Imager:

    High Density

    Interface:

    USB (w/Cable)

    $440.25

    DS9908-SR4U2300AZW

    DS9908-SR USB Kit: Scanner &amp; Shielded USB Power+ Cable

    Color:

    Black

    Imager:

    Standard Range

    Interface:

    USB Power+ (w/Cable)

    $452.25

    DS9908-HD4000WZZWW

    DS9908: Presentation Area Imager, High Density, Corded, Alpine White, Scanner Only — Order Cable Separately

    Color:

    Alpine White

    Imager:

    High Density

    Interface:

    USB Cable

    $440.00

    DS9908-DL00004ZZNA

    DS9908-DL - SR Scanner w/Drivers License Parsing, Scanner Only — Order Cable Separately

    Color:

    Black

    Interface:

    No Cable

    Imager:

    Standard Range w/DL Parsing

    $444.00

    DS9908-SR00004ZCWW

    DS9908-SR - SR Scanner with Checkpoint EAS, Scanner Only — Order Cable Separately

    Color:

    Black

    Interface:

    No Cable

    Imager:

    Standard Range/Checkpoint EAS

    $447.75

    DS9908-HL4000WZZNA

    DS9908-HL - HD Scanner w/Drivers License Parsing, Scanner Only — Order Cable Separately

    Color:

    Alpine White

    Imager:

    High Density w/DL Parsing

    Interface:

    No Cable

    $444.00

    DS9908-DL00004ZCNA

    DS9908-DL - SR Scanner w/Drivers License Parsing & Checkpoint EAS, Scanner Only — Order Cable Separately

    Color:

    Black

    Interface:

    No Cable

    Imager:

    Standard Range w/DL Parsing

    $467.25

    Shop DS9908 Accessories

    BRKT-MM0099C-04

    Multi-Mount - DS9908 (Midnight Black)

    $21.14

    CBA-U21-S07ZBR

    Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)

    $38.97

    CBA-U32-C09ZAR

    Cable, Shielded USB: Series A Connector, 9ft. 2.8m, Coiled

    $45.06

    CBA-U26-S09EAR

    Cable, Shielded USB: Series A Connector, 9ft. 2.8m, Straight, EAS

    $82.79

    CBA-R01-S07PBR

    Cable, RS232, DB9 FEMALE CONNECTOR, 7FT. (2M) STRAIGHT, TXD ON 2

    $35.32

    PWR-WUA5V4W0US

    Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)

    $43.45
