Zebra DS8178

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5

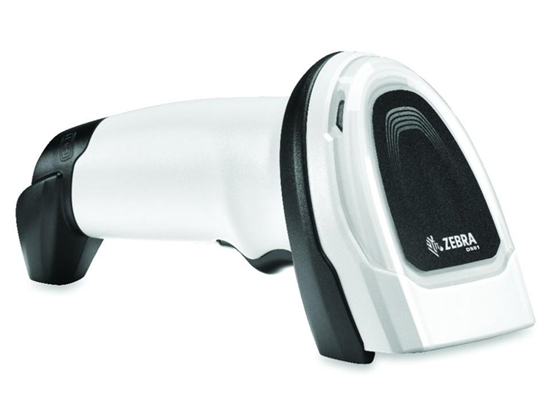

Corded models are available to purchase on the DS8108 page!

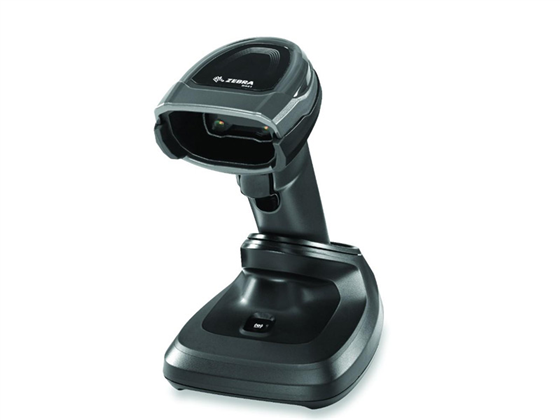

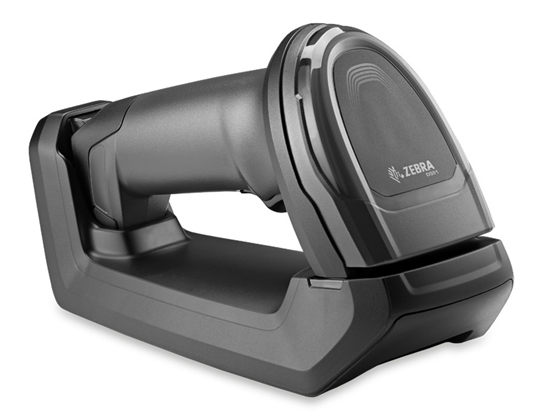

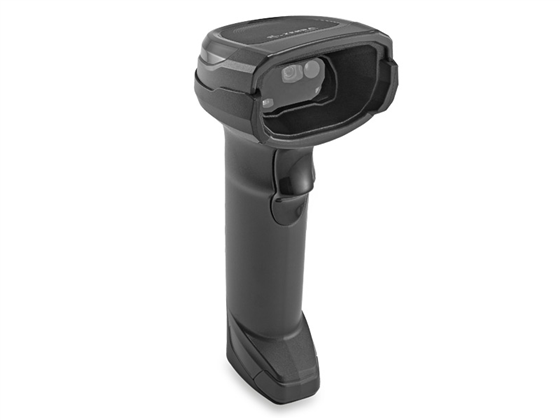

For the ultimate scanner that has the look ideal for customer facing applications, the Zebra DS8178 bluetooth imager has outstanding data capture capabilities.

The DS8178 with Multi-code Data Formatting (MDF) has the ability to read multiple barcodes and only transmit those required and in a specified order, with only one press of the trigger. Having a scan range up to 2 feet gives the cashier the ability to easily scan products on the bottom of the cart without having to leave their station.

    Features
  • 2D Imager
  • Federal-Specific Usage: Federal Information Processing Standards (FIPS) Compliant Models Available
  • Bluetooth 4.0 with BLE (Low Energy)
  • Continuous 24 Hr Scanning Battery Life
  • Instant Full Page Document Scanning*
  • Drivers License Data Capture On DL Version
  • 3 Year Warranty
Please visit our Youtube channel for a full video review of the DS8178 POSGuys Full Review.
Dimensions
6.6in H x 2.6in W x 4.2in D
Weight
5.4oz/154 g
Color Options
Nova White<br>Twilight Black
Interface
USB<br>RS232<br>Keyboard Wedge<br>TGCS (IBM) 46XX over RS485
Scan Method
Imager
Scan Engine
Standard Range<br>Drivers License Parsing (option)<br>Health Care (option)
Scan Range
Near Touch to 24in
Decoding Capabilities
1D<br>2D<br>Digimarc
Mobility/Range
Cordless
Reading Angle
Pitch: +/- 60°<br>Roll: +/- 60° <br>Yaw: +/- 360°
Print Contrast (Min.)
16%
Indicators
LEDs<br>Beeper
Auto Sense Mode
Yes, In Stand
Operating Temperature
32° to 122°F<br>0° to 50°C
Storage Temperature
-40° to 158°F<br>-40° to 70°C
Drop Specification
6.0 ft/1.8m to concrete
Environmental Sealing
IP42
Ambient Light (Max)
0 to 9,000 Foot Candles<br>0 to 96,840 Lux
Stand
Presentation Stand (Optional)
Warranty
3 Years
123Scan Configuration Utility (Windows 32-Bit)
Download
123Scan Configuration Utility (Windows 64-Bit)
Download
Scan to Connect (Android)
Download
Scan to Connect (Win 32-bit)
Download
Scan to Connect (Win 64-bit)
Download
DS8100 Quick Start Guide
Download
DS8100 User Manual
Download
DS8100 Data Sheet
Download
Pick List Mode Configuration
Download

Shop DS8178 Windows Models

DS8178-SR7U2100PFW

DS8178-SR Presentation Cradle USB KIT: Inlcudes Standard Range Scanner, USB Cable, and Presentation Cradle (FIPS) (Black)

Color:

Black

Healthcare:

No

Cradle:

Presentation Cradle

Scan Engine:

Standard Range

Interface:

USB

$894.75

DS8178-SR7U2100SFW

DS8178-SR Standard Cradle USB KIT: Includes Standard Range Scanner, USB Cable, and Standard Cradle (Black)

Color:

Black

Healthcare:

No

Cradle:

Standard Cradle

Scan Engine:

Standard Range

Interface:

USB

$894.75

DS8178-SR6U2100P2W

DS8178 Presentation Cradle USB Kit. Standard Range Imager. White Scanner. Includes USB Cable and Black Presentation Cradle (FIPS).

Healthcare:

No

Color:

Nova White

Cradle:

Presentation Cradle

Scan Engine:

Standard Range

Interface:

USB

$894.75

DS8178-SR6U2100S2W

DS8178 Cordless Barcode Scanner With Standard Cradle. Standard Range Imager. White Scanner. Includes USB Cable and Black Standard Cradle (CR8178-SC100F4WW).

Healthcare:

No

Color:

Nova White

Cradle:

Standard Cradle

Scan Engine:

Standard Range

Interface:

USB

$894.75

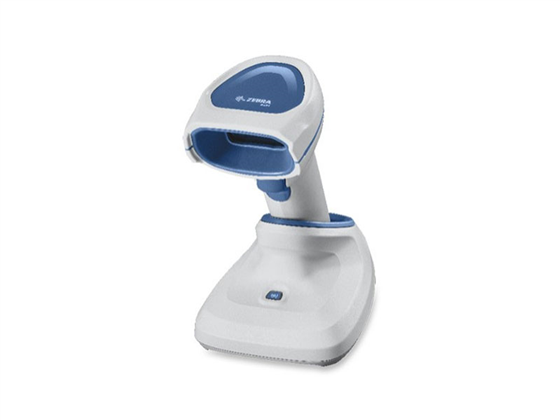

DS8178-HCBU210SP5W

DS8178-HC FIPS PRESENTATION USB KIT: DS8178-HCSF00BVMWW HEALTHCARE SCANNER WITH POWERCAP , CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-PC100FBWW CRADLE

Color:

Health Care White

Cradle:

Presentation Cradle

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$972.49

DS8178-HCBU210SS5W

POWERCAP , CBA-U21-S07ZBR SHIELDED USB CABLE, CR8178-SC100FBWW CRADLE DS8178-HC FIPS DESK/WALL USB KIT: DS8178-HCSF00BVMWW SCANNER WITH

Cradle:

Desk/Wall Cradle

Color:

Health Care White

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$972.49

DS8178-HCBU210MP5W

DS8178-HC, FIPS Presentation Cradle with Magnet USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-PCM00FBWW Cradle

Color:

Health Care White

Cradle:

Presentation Cradle

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$956.05

DS8178-DL7U2100PFW

DS8178-DL Presentation Cradle USB KIT: Includes Drivers License Parsing Scanner, USB Cable, and Presentation Cradle (FIPS) (Black)

Color:

Black

Scan Engine:

Driver’s License Parsing

Healthcare:

No

Cradle:

Presentation Cradle

Interface:

USB

$913.63

DS8178-DL7U2100SFW

DS8178-DL Standard Cradle USB KIT: Includes Drivers License Parsing Scanner, USB Cable, and Standard Cradle (Black)

Color:

Black

Scan Engine:

Driver’s License Parsing

Healthcare:

No

Cradle:

Standard Cradle

Interface:

USB

$913.63

DS8178-SR700000SFW

DS8178-SR FIPS Standard Cradle KIT: Includes Standard Range Scanner and (FIPS) Standard Cradle (Cable NOT INCLUDED)(Black)

Color:

Black

Interface:

Cable Not Included

Healthcare:

No

Cradle:

Standard Cradle

Scan Engine:

Standard Range

$874.37

DS8178-SR0F007ZZWW

DS8178-SR Cordless 2D Imager, Standard Range, FIPS (Cradle and Cable NOT INCLUDED) (Black)

Color:

Black

Interface:

Cradle and Cable Not Included

Healthcare:

No

Cradle:

Required

Scan Engine:

Standard Range

$624.44

DS8178-DL0F007ZZWW

DS8178 Cordless Imager, Drivers License Parsing, FIPS, Scanner Only (Cradle and Cable NOT INCLUDED) (Black)

Color:

Black

Interface:

Cradle and Cable Not Included

Scan Engine:

Driver’s License Parsing

Healthcare:

No

Cradle:

Required

$643.32

DS8178-DL6U2100S2W

DS8178 Cordless Barcode Scanner With Drivers License Parsing & Standard Cradle. Standard Range Imager with DL Parsing. White Scanner. Includes USB Cable and Black Standard Cradle (CR8178-SC100F4WW).

Scan Engine:

Driver’s License Parsing

Healthcare:

No

Color:

Nova White

Cradle:

Standard Cradle

Interface:

USB

$913.63

DS8178-DL6U2100P2W

DS8178 Cordless Barcode Scanner With Drivers License Parsing & Presentation Cradle. Standard Range Imager with DL Parsing. White Scanner. Includes USB Cable and Black Presentation Cradle (CR8178-PC100F4WW).

Scan Engine:

Driver’s License Parsing

Healthcare:

No

Color:

Nova White

Cradle:

Presentation Cradle

Interface:

USB

$913.63

DS8178-SR0F006ZMWW

DS8178 Cordless Imager, Nova White, Standard Range, FIPS, MFi Scanner Only (Cradle and Cable NOT INCLUDED)

Interface:

Cradle and Cable Not Included

Healthcare:

No

Color:

Nova White

Cradle:

Required

Scan Engine:

Standard Range

$624.44

DS8178-HCBU210MS5W

DS8178-HC Healthcare Standard Cradle USB Kit: FIPS, Includes Standard Range HC Scanner, USB Cable, and Standard Cradle (HealthCare White)

Color:

Health Care White

Cradle:

Standard Cradle

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$956.05

DS8178-HCBU210FP5W

DS8178-HC, FIPS Presentation Cradle (with Fasteners) USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-PCM00FBWW Cradle, FAST-PC0081W-Q1 (Adhesive Fasteners Included)

Color:

Health Care White

Cradle:

Presentation Cradle

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$963.88

DS8178-HCBU210FS5W

DS8178-HC, FIPS Desk/Wall Cradle (with Fasteners) USB KIT: DS8178-HCMF00BVMWW Scanner, CBA-U21-S07ZBR Shielded USB Cable, CR8178-SC100FBWW Cradle, FAST-PC0081W-Q1 (Adhesive Fasteners Included)

Color:

Health Care White

Cradle:

Standard Cradle

Scan Engine:

Standard Range

Interface:

USB

Healthcare:

Yes

$963.88

DS8178-HCMF00BVMWW

DS8178 Cordless Imager, FIPS, Magnetic Foot, Vibration Motor, Scanner Only, MFI (Cradle and Cable NOT INCLUDED) (HealthCare White)

Interface:

Cradle and Cable Not Included

Scan Engine:

Health Care

Color:

Health Care White

Cradle:

Required

Healthcare:

Yes

$681.21

Shop DS8178 Accessories

SSE-DS8178-30

Zebra OneCare for DS8178, Essential Comprehensive Coverage, 3 Year, Must be Purchased Within 30 Days

$80.00

SSS-DS8178-30

Zebra OneCare for DS8178, Select Comprehensive Coverage, Advance Ship, 3 Year, Must be Purchased Within 30 Days

$90.00

CBA-U21-S07ZBR

Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)

$38.97

CR8178-SC100F4WW

Standard Cradle for the DS8178 & DS4678, DS46XX, Black, Bluetooth, FIPS, Cradle Only - Requires Cables

$391.69

CR8178-PC100F4WW

Presentation Cradle for DS8178, Black, Bluetooth, FIPS, Cradle Only, Requires Cables

$391.69

BTRY-DS81EAB0E-00

81XX, Spare Battery (Batteries must be shipped via ground shipping)

$108.38

PWR-WUA5V4W0US

Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)

$43.45

SUPR-DS81E000E-00

POWERCAP™ Replacement battery upgrade for use with DS8178. Works on all versions with firmware update. (Batteries must be shipped via ground shipping)

$133.94

Z1AE-DS8178-3C00

3 Year Zebra OneCare Essential. Includes Comprehensive Coverage. Includes Coverage for Cradles.

$91.35
