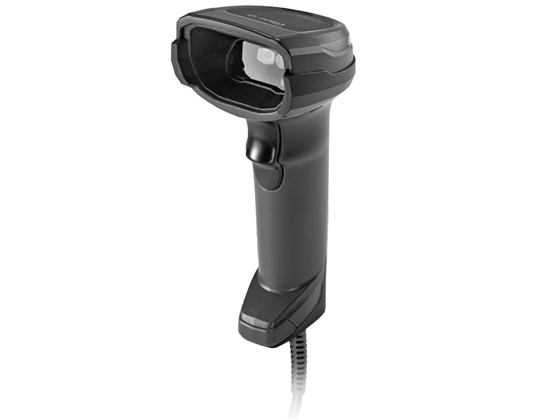

Zebra DS8108

Images may not reflect the actual product
Product Image
small product image0
small product image1

Positioned to be the most powerful retail scanner on the market today, Zebra's DS8108 handheld imager provides high speed data capture along with the variety of scanner options available in the industry.

Ideal for intense scanning environments, where a variety of barcodes could be present, the DS8108 has been designed to tackle them all. From all 2D images, to drivers licensing parsing this family of scanners has been purpose built to be capture them all in record time and with little effort. The scan range offers users the option to scan from the counter to the bottom of the basket to near touch of the scanner to the code. Codes on screens or colored papers have been proven to be no problem for this device to handle. Available in both a corded and cordless version, the DS22x8 would work in every retail vertical from the point of sale to the warehouse. Zebra's 3 year warranty with additional warranties available give the user the piece of mind knowing their favorite scanner can be supported through out the users need for it.

    Features
  • Handheld 2D Imager
  • Corded Version cable included
  • 24in Scan Range
  • Scans tired and worn barcodes
  • Drivers License Parsing Available
  • Multi-Code Data Format (MDF) Scanning Available
  • Intelligent Document Capture Options (Full Page Instant Capture)
  • 3 Year Warranty

A cordless version of the DS8108 can be found on the DS8178 page!

Dimensions
6.6in H x 2.6in W x 4.2in D
Weight
5.4oz/154 g
Color Options
Nova White<br>Twilight Black
Interface
USB<br>RS232<br>Keyboard Wedge<br>TGCS (IBM) 46XX over RS485
Scan Method
Imager
Scan Engine
Standard Range<br>Drivers License Parsing (option)<br>Health Care (option)
Scan Range
Near Touch to 24in
Decoding Capabilities
1D<br>2D<br>Digimarc
Mobility/Range
Corded
Reading Angle
Pitch: +/- 60°<br>Roll: +/- 60° <br>Yaw: +/- 360°
Print Contrast (Min.)
16%
Indicators
LEDs<br>Beeper
Auto Sense Mode
Yes, In Stand
Operating Temperature
32° to 122°F<br>0° to 50°C
Storage Temperature
-40° to 158°F<br>-40° to 70°C
Drop Specification
6.0 ft/1.8m to concrete
Environmental Sealing
IP42
Ambient Light (Max)
0 to 9,000 Foot Candles<br>0 to 96,840 Lux

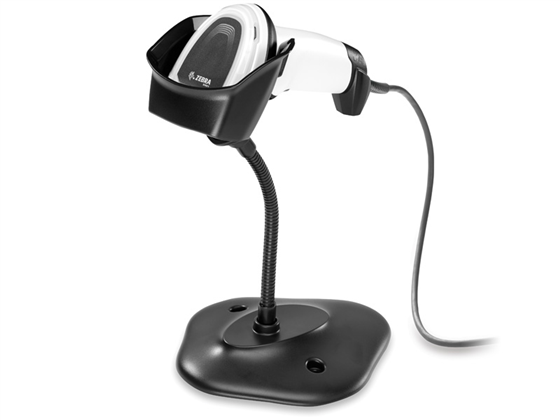

Stand
Presentation Stand (Optional)
Warranty
3 Years
123Scan Configuration Utility (Windows 32-Bit)
Download
123Scan Configuration Utility (Windows 64-Bit)
Download
Data Sheet
Download
Quick Start Guide
Download
Product Reference Guide
Download

Shop DS8108 Windows Models

DS8108-SR7U2100AZW

DS8108-SR USB KIT: Standard Range Scanner w/ USB Cable, Black

Color:

Black

Scan Engine:

Standard Range

Interface:

USB

$365.16

DS8108-SR7U2100SGW

DS8108-SR USB KIT: Standard Range Scanner w/USB Cable and Gooseneck Intellistand, Black

Color:

Black

Extra Features:

Includes Stand

Scan Engine:

Standard Range

Interface:

USB

$392.57

DS8108-SR6U2100AZW

DS8108-SR USB KIT - Scanner and USB Cable Included, White

Scan Engine:

Standard Range

Interface:

USB

Color:

White

$365.16

DS8108-SR6U2100SGW

DS8108 Standard Range Barcode Scanner Kit. White. Standard Range Imager. Includes Black Gooseneck Intellistand & USB Interface Cable.

Extra Features:

Includes Stand

Scan Engine:

Standard Range

Interface:

USB

Color:

White

$392.57

DS8108-DL7U2100AZW

DS8108-DL USB KIT: Drivers License Parsing Scanner w/USB Cable, Black

Color:

Black

Scan Engine:

Drivers License Parsing

Interface:

USB

$384.41

DS8108-DL7U2100SGW

DS8108-DL USB KIT: Drivers License Parsing Scanner w/USB Cable and Gooseneck Intellistand, Black

Color:

Black

Scan Engine:

Drivers License Parsing

Extra Features:

Includes Stand

Interface:

USB

$411.08

DS8108-DL6U2100AZW

DS8108-DL USB KIT: Drivers License Parsing Scanner w/ USB Cable, White

Scan Engine:

Drivers License Parsing

Interface:

USB

Color:

White

$384.41

DS8108-DL6U2100SGW

DS8108 Drivers License Parsing Barcode Scanner Kit. White. Standard Range Imager. Includes Black Gooseneck Intellistand & USB Interface Cable.

Scan Engine:

Drivers License Parsing

Extra Features:

Includes Stand

Interface:

USB

Color:

White

$411.08

DS8108-SR00006ZZWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not Included), White

Scan Engine:

Standard Range

Color:

White

$345.16

DS8108-DL00006ZZWW

DS8108-DL, Area Imager, Drivers License Parsing, Corded (Cable not Included), White

Scan Engine:

Drivers License Parsing

Color:

White

$363.68

DS8108-SR600000SGW

DS8108 Standard Range Barcode Scanner. White. Standard Range Imager. Includes Black Gooseneck Intellistand (Interface Cable Not Included),

Extra Features:

Includes Stand

Interface:

See Accessories for Cable

Scan Engine:

Standard Range

Color:

White

$371.83

DS8108-DL600000SGW

DS8108 Drivers License Parsing Barcode Scanner. White. Standard Range Imager. Includes Black Gooseneck Intellistand (Interface Cable Not Included),

Scan Engine:

Drivers License Parsing

Extra Features:

Includes Stand

Interface:

See Accessories for Cable

Color:

White

$391.08

DS8108-SR700000SGW

DS8108-SR KIT: Standard Range Scanner and Hands-Free Goosneck Intellistand (Cable not Included), Black

Color:

Black

Extra Features:

Includes Stand

Interface:

See Accessories for Cable

Scan Engine:

Standard Range

$371.83

DS8108-DL700000SGW

DS8108-DL KIT: Drivers License Parsing Scanner and hands-free Gooseneck Intellistand (Cable not Included), Black

Color:

Black

Scan Engine:

Drivers License Parsing

Extra Features:

Includes Stand

Interface:

See Accessories for Cable

$391.08

DS8108-SR00007ZZWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not Included), Black

Color:

Black

Scan Engine:

Standard Range

$345.16

DS8108-DL00007ZZWW

DS8108-DL, Area Imager, Drivers License Parsing, Corded (Cable not Included), Black

Color:

Black

Scan Engine:

Drivers License Parsing

$363.68

DS8108-SR00007ZCWW

DS8108-SR, Area Imager, Standard Range, Corded (Cable not included), Black, Checkpoint EAS

Color:

Black

Extra Features:

EAS Security

Scan Engine:

Standard Range

$382.94

DS8108-HC4000BVZWW

DS8108-HC, Area Imager, Healthcare, Corded (Cable not Included), HC White, Vibration Motor

Color:

HC White

Extra Features:

Health Care

$373.30

DS8108-HCBU2104ZVW

DS8108-HC USB KIT: Healthcare White Scanner w/ USB Cable, Vibration Motor

Color:

HC White

Extra Features:

Health Care

Interface:

USB

$394.05

Shop DS8108 Accessories

CBA-U21-S07ZBR

Cable - Shielded Usb: Series A Connector, 7Ft. (2.1M), Straight (Updated)

$38.97

20-71043-04R

Gooseneck Intellistand – Black (DS2208, DS4308, DS4608, DS8108)

$51.14

STND-GS00UNC-04

Universal Gooseneck Intellistand – Black (LS2208, LI2208, LS4208, DS2208, DS4208, DS4308, DS4608, DS8108)

$51.14

Z1AE-DS8108-3C00

Zebra 3 Year Zebra Onecare Essential. Includes Comprehensive Coverage. Includes Coverage For Cradles.

$52.53
