MicroTouch Desktop Series
Description
Specifications
Download

MicroTouch Desktop Series

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

The ultra-modern, unique zero bezel and modular design of the Desktop Series makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, Full HD 1920 x 1080 solution is great for retail point-of-sale or point-of-service with add-on features like 3 track MSR and a 2MP camera – two mounting locations, side and top. The seamless bezel, advanced PCAP technology and rounded aesthetic bridges the gap between daily consumer devices and commercial devices, a step towards commonality and memorable end-user experience.

Featured Specifications

  • Size: 15.6” TFT LCD or 21.5" TFT LCD
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Brightness:
    • 15.6": 450 nits (No Touch), 405 nits (P-CAP)
    • 21.5": 250 nits (No Touch), 225 nits (P-CAP)
  • View Angle: H: 178˚, V: 178˚

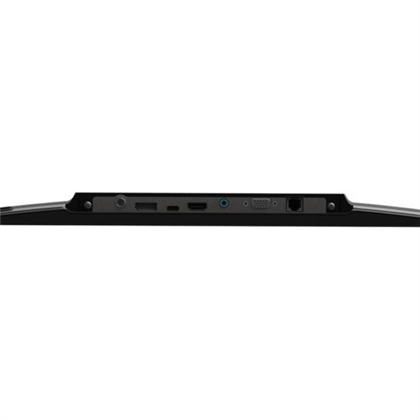

  • Video Port: 1 x VGA, 1 x DP, 1 x HDMI
  • Warranty: 3 Year
Touch Screen
Projected Capacitive
Touch Points
10
Touch Screen Interface
USB-C
Serial Port
1 x RJ11 (for Remote Key)
USB Port
1 x USB Type C (Alt Mode for DP video support)
Video Port
1 x VGA, 1 x DP, 1 x HDMI (up to 1920 x 1080 @60Hz)
Audio Port
1 x Audio-Input (3.5 mm Mini-Jack)
Power Input
1 x DC In 12V Jack Power Input
Power Supply
Max. 60W (12V, 5A) External Power Adaptor
Speaker
2 x 2W
Housing Color
Black
Construction
Glass, Plastic (ABS), SECC Metal
Dimensions (W x H x D) mm
<ul> <li><strong>15.6":</strong> 369.1 x 223.7 x 27.2 mm (monitor only)</li> <li><strong>21.5":</strong> 510.96 x 308.01 x 37.9 mm (monitor only)</li> </ul>
Net Weight (kg)
<ul> <li><strong>15.6":</strong> 1.805 kg (monitor only)</li> <li><strong>21.5":</strong> 4.05 kg (monitor only)</li> </ul>
Gross Weight (kg)
<ul> <li><strong>15.6":</strong> 2.80 kg (monitor only)</li> <li><strong>21.5":</strong> 8.8 kg (monitor only)</li> </ul>
Carton (W x H x D) mm
<ul> <li><strong>15.6":</strong> 455 x 315 x 150 mm (monitor only)</li> <li><strong>21.5":</strong> 615 x 405 x 160 mm (monitor only)</li> </ul>
VESA
100 x 100 mm
Operating Temperature
0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing
Storage Temperature
-20˚C ~ 60˚C, 10% ~ 90% RH. Non-Condensing
Optional Peripheral
<ul> <li><b>Camera: </b>CAM-000-A1 (Sold Separately)</li> <li><b>MSR: </b>MSR-A1 (Sold Separately)</li> <li><b>15.6" Slim Stand: </b>SS-156-A1 (Sold Separately)</li> <li><b>21.5” Dual-Display Stand: </b>DD-215-A1 (Sold Separately)</li> </ul>
15.6" Spec Sheet
Download
21.5" Spec Sheet
Download
