Sato CL6NX Plus
Description
Specifications
Download

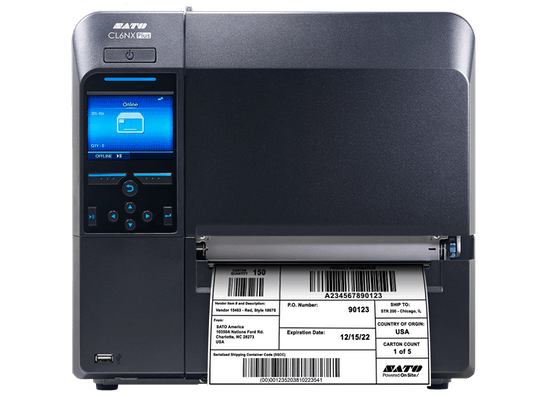

Sato CL6NX Plus

Images may not reflect the actual product
Product Image
small product image0

ATO's CL6NX Plus Printer sets a new and innovative industry standard for ease of use, intelligence, on-board industry emulations, connectivity, speed of processing data streams, user activity interface, and so much more.

Ease of Use

Built with integrity, designed with the operator and productivity in mind, CL6NX Plus is the next evolution in this product series and will surpass your expectations of today’s printing technology. With the support of up to 8.6-inch (218mm) OD of media and 1968-foot (600m) ribbon and incorporating Smart Print head technology to keep track of usage specific to the print head installed. The platen roller with the Pure Line indicator provides a visual wear indicator so users can be proactive when it is necessary to change this critical component. Speaking of consumable components, the CL6NX Plus is still one of the easiest industrial tabletop printer models to replace the print head and platen roller with no tools required.

Micro Label Print Mode

The Micro Label Print Mode provides higher print accuracy for small pitch labels and can even dispense labels as small as 10mm. Using SATO Application Enabled Printing (AEP), you can create custom standalone applications that can be run directly on the printer independent of host software and connect peripheral devices directly to the printer such as keyboards, weigh scales, barcode scanner for data input.

RFID

Businesses can save labor, speed up their operations and enjoy many advantages from using the CLNX Plus RFID Series of printers. These CL6NX Plus can print text and barcodes on UHF tags/labels and encode data in their embedded chips at the same time. In addition to being equipped with on-screen menus that save users the trouble of adjusting antenna position manually, the printer is capable of checking RFID chips prior to encoding to verify their readiness to use and prevent failures.

The CLNX Plus RFID Printers are rich in Benefits and Features. SATO RF Analyze (SRA) function optimizes the antenna and inlay setting automatically for fast and stable encoding. Users can now find the best settings to encode RFID tags/tags when their characteristics vary randomly due to lot differences or adjusting the write/read conditions as needed when encoding errors appear.

Registering commonly used settings, can save up to 10 write/read tags/labels types. The user can now select and load these store settings to encode multiple media with the same printer. Having a compatibility with specialty RFID labels/tags supports the encoding of various RFID labels/tags including tags used with metals.

Print Resolution
203 dpi (8 dots/mm) / 305 dpi (12 dots/mm)
Max. Print Speed
10 ips (203dpi) / 8 ips (300dpi)
Max Print Width
6.59"
Media Roll Diameter
Up to 8.6" OD (220mm) on 3" (76.0mm) ID Core
Ribbon Roll Diameter
Maximum 3.54" (90.0mm)
Media Type
Roll (Continuous, Die-cut, Linerless), Fan-fold, Tag, Ticket
Print Method
Direct Thermal or Thermal Transfer
Interface Options
USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, NFC
Optional Wireless
Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11ac, Dual Band (2.4 GHz, 5 GHz)
Operating Temperature
32 to 104°F (0 to 40°C)
Dimensions (L x W x H):
17.99" L x 13.31" W x 12.64" H (457mm x 338mm x 321mm)
Weight
44.75 lbs
Construction
Die-cast Aluminum (Base, Frame, Front Cover, Ribbon Spindle, Print Head Mechanism)
CL6NX Spec Sheet
Download
CL6NX User Manual
Download

Shop CL6NX Plus Windows Models

WWCLPA001

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER (No Bluetooth)

$3380.65

WWCLPB201

CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, LAN/USB/SER/Bluetooth & RTC

$3536.09

WWCLPB201-WAN

CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, LAN/USB/SER/Bluetooth, with WLAN, Dispenser, Rewinder

$3956.34

WWCLPA201

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER/Bluetooth, with Dispenser, Rewinder

$3115.83

WWCLPBA01-WAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN & Cutter & RTC (No Bluetooth)

$7525.43

WWCLPA701-NAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER & RTC (No Bluetooth)

$5561.86

WWCLPAC01-WAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN, Dispenser, Rewinder & RTC (No Bluetooth)

$6649.27

WWCLPBA01-NAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with Cutter & RTC (No Bluetooth)

$7016.65

WWCLPBC01-WAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN, Dispenser, Rewinder & RTC (No Bluetooth)

$7132.91

WWCLPAA01-WAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN & Cutter & RTC (No Bluetooth)

$7040.83

WWCLPB701-NAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER & RTC (No Bluetooth)

$6045.50

WWCLPB701-WAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN & RTC (No Bluetooth)

$6553.33

WWCLPBC01-NAR

RFID CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with Dispenser, Rewinder & RTC (No Bluetooth)

$6625.09

WWCLPAC01-NAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with Dispenser, Rewinder & RTC (No Bluetooth)

$6140.48

WWCLPA701-WAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with WLAN & RTC (No Bluetooth)

$6069.68

WWCLPAA01-NAR

RFID CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, UHF, LAN/USB/SER, with Cutter & RTC (No Bluetooth)

$6533.01

WWCLPA001-NAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER & RTC (No Bluetooth)

$3486.07

WWCLPA201-WAN

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER/Bluetooth, with WLAN, Dispenser, Rewinder

$4028.72

WWCLPB101-WAN

CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN & Cutter (No Bluetooth)

$5344.23

WWCLPA001-WAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN & RTC (No Bluetooth)

$3993.91

WWCLPA101-WAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN & Cutter & RTC (No Bluetooth)

$4965.05

WWCLPA201-NAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with Dispenser, Rewinder & RTC (No Bluetooth)

$3959.27

WWCLPA001-WAN

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN (No Bluetooth)

$3888.47

WWCLPA101-WAN

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN & Cutter (No Bluetooth)

$4859.62

WWCLPA201-WAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN, Dispenser, Rewinder & RTC (No Bluetooth) C

$4468.05

WWCLPB001-WAN

CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with WLAN (No Bluetooth)

$4372.10

WWCLPA101

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with Cutter (No Bluetooth)

$4351.80

WWCLPA101-NAR

CL6NX Plus 203dpi 6.5" Thermal Transfer Printer, LAN/USB/SER, with Cutter & RTC (No Bluetooth)

$4457.24

WWCLPB001

CL6NX Plus 305dpi 6.5" Thermal Transfer Printer, LAN/USB/SER (No Bluetooth)

$3864.28

WWCLPB101

CL6NX Plus, 305dpi 6.5" Thermal Transfer Printer, Lan/USB/serial, with Cutter (No Bluetooth)

$4855.15

Shop CL6NX Plus Accessories

OS2D-1S-CL6XP-SPEC

Onsite Service, One Year, Two Business Day Respone Time CL6NX Plus, Existing Printer, Special Promotional Price US

$115.00

OS2D-3S-CL6XP-SPEC

Onsite Service, Three Years, Two Business Day Respone Time CL6NX Plus, Existing Printer, Special Promotional Price US

$680.00

OS2D-1S-CL6XP-SPCC

Onsite Service, One Year, Two Business Day Respone Time CL6NX Plus, Existing Printer, Special Promotional Price CANADA

$138.00

OS2D-3S-CL6XP-SPCC

Onsite Service, Three Years, Two Business Day Respone Time CL6NX Plus, Existing Printer, Special Promotional Price CANADA

$816.00

R38747600

CL6NX Plus Print Head (6.5" - 305 dpi)

$918.52
