Citizen CL-S700III
Description
Specifications
Download

Citizen CL-S700III

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8
Industrial Label Printing at its Finest Renowned Reliability Meets Outstanding Usability

Featuring Cross Emulation, the CL-S700III can flawlessly and automatically switch between Zebra® and Datamax® emulations – making integration fast and simple. Complete with a color LCD touchscreen, ARCP print technology, set up wizard, print previews and shortcuts – printing complex labels like rating plates, textile labels and production line stickers is now easier to execute.

Enhanced User Experience with Setup Wizard

The set-up wizard shows you set up instructions with illustrations – perfect for training new users as well as reminding existing users without the need for a manual or online support. Additionally, when an error occurs the set up wizard will display the corresponding solution methods, making troubleshooting simple.

Print wirelessly with Standalone Forms

For customers who wish to print labels without a desktop, they’ll love the CL-S700III’s Standalone Forms feature. Standalone Forms allows you to print specifically formatted labels with variable data you can share with the printer through it’s USB host connector. This allows users to create labels of their choosing.

Connectivity is Key

Equipped with a USB host connector where you can connect scanners, memory sticks or any other USB compatible peripherals. The USB host connector can also be used to quickly update the printer’s firmware as well as use the Standalone Forms feature and save/load specific print data.

Features & Benefits
  • Paper exit: Front exit - prevents damage from moisture or foreign objects

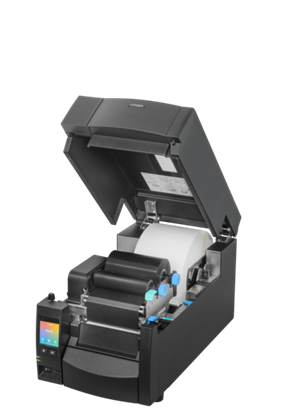

  • Paper load: Front access for all operations including media and ribbon changing
  • Printing Speed: Ultra fast print out - up to 300mm per second (12 inches per second)
  • Media support: Very large media capacity - holds rolls up to 8 inches (200 mm)
  • Ribbon options: Wide range of ribbon options - Uses up to 450 metres inside and outside wound ribbons Display: Colour LCD panel with touch control, plus two buttons

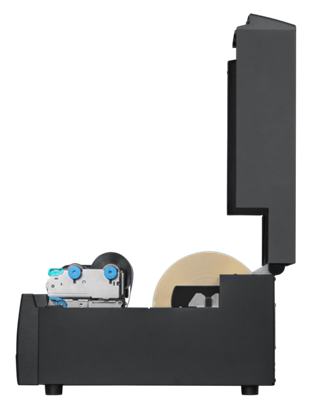

  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
  • Basic peeler
  • Warranty 2 years on printer. 6 months or 50 Kms printhead

BOX CONTENTS
  • Quick Start Guide
  • Power Cord
  • Ribbon Holder
  • Paper Core (for ribbon)
  • Media Holder Guide
  • Media Holder Bar
Printing Technology
Thermal Transfer + Direct Thermal
Resolution
203 dpi
Print Width (maximum)
4 inches (104 mm)
Media Width (min to max)
1 - 4.6 inches (25 - 118 mm)
Roll Size (max), Core Size
Outside diameter 8 inches (200mm) Core size 1 to 3 inches (25 to 75 mm)
Media Thickness (min to max)
63.5 to 254 µm
Media Length (min to max)
0.25 to 99.99 inches (6.35 to 2539.74mm)
Media Sensor
Fully adjustable gap, notch and reflective black mark
Main Interface
Triple interface: USB and Ethernet built-in plus interface card slot for optional card
Optional interfaces
Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps, Ethernet (10/100 BaseT), Premium Wireless LAN, Serial (RS-232C compliant), Parallel (IEEE 1284 compliant), Compact Wireless LAN
Ribbon size
3.4 inches (86.5 mm) maximum outside diameter. 450 metres length.
Ribbon winding & type
Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type
Ribbon system
ARCP™ automatic ribbon tension adjustment
Mechanism
Hi-Lift™ metal mechanism with wide opening head

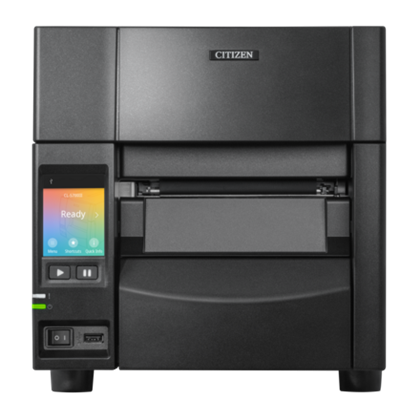

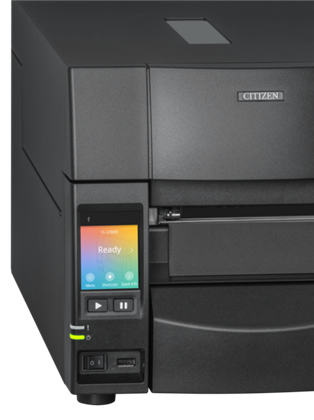

Control panel
2 buttons, colour LCD panel with touch control
Emulations (Languages)
Datamax® DMX, Zebra® ZPL2® , Eltron® EPL2® , CBI™ BASIC Interpreter, Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations
Drivers and software
Free-of-charge from website, including support for various platforms
Size (W x D x H) and Weight
255 x 490 x 265 mm, 13.3 Kg
Warranty
2 years on printer. 6 months or 50 Kms printhead
CL-S700III Spec Sheet
Download
CL-S700III User Guide
Download
CL-S703III Windows Driver
Download

Shop CL-S700III Windows Models

CL-S700IIINNU

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet. Gray. Power Supply Included.

Interface:

USB & Ethernet

$1189.00

CL-S700III-EPU

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB & Ethernet. Gray. Power Supply Included.

Interface:

USB & Ethernet

$1388.00

CL-S700III-EPU-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Short Range Dongle, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB, Ethernet & WiFi (Short Range)

$1552.00

CL-S700III-EPUL

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Long Range Dongle. Gray. Power Supply Included.

Interface:

USB, Ethernet & WiFi (Long Range)

$1419.00

CL-S700III-EPUL-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Long Range Dongle, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB, Ethernet & WiFi (Long Range)

$1640.00

CL-S700III-EPUL-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Long Range Dongle, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB, Ethernet & WiFi (Long Range)

$1569.00

CL-S700III-EPUS

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Short Range Dongle. Gray. Power Supply Included.

Interface:

USB, Ethernet & WiFi (Short Range)

$1418.00

CL-S700III-EPUS-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Short Range Dongle, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB, Ethernet & WiFi (Short Range)

$1638.00

CL-S700III-HETU

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Remote Management. Gray. Power Supply Included.

Interface:

USB & Ethernet

$1367.00

CL-S700III-EPUS-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Short Range Dongle, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB, Ethernet & WiFi (Short Range)

$1569.00

CL-S700III-HETU-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Remote Management, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB & Ethernet

$1542.00

CL-S700III-HETU-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Remote Management, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB & Ethernet

$1499.00

CL-S700IIINNU-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB & Ethernet

$1406.00

CL-S700IIINNU-HC

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Rotary Cutter. Gray. Power Supply Included.

Cutter:

Rotary Cutter

Interface:

USB & Ethernet

$1889.00

CL-S700IIINNU-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB & Ethernet

$1364.00

CL-S700III-RSU

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Serial Interface. Gray. Power Supply Included.

Interface:

USB, Serial, & Ethernet

$1249.00

CL-S700III-RSU-C

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Serial Interface, Standard Cutter. Gray. Power Supply Included.

Cutter:

Standard Cutter

Interface:

USB, Serial, & Ethernet

$1423.42

CL-S700III-RSU-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, Serial Interface, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB, Serial, & Ethernet

$1376.00

CL-S700III-EPU-P

CL-S700III 4.6" Thermal Transfer Label Printer, 203 DPI. USB, Ethernet, WiFi, Short Range Dongle, Peeler. Gray. Power Supply Included.

Peeler:

Peeler

Interface:

USB, Ethernet & WiFi (Short Range)

$1510.00
