Citizen CL-S521II/CL-S531II

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

Packed with features for industrial desktop printing

The CL-S521II offers a reliable, easily integrated industrial desktop printing solution. These units are supplied as standard with on-board ZPL2®, Datamax® and EPL2® emulations plus CBI BASIC Interpreter programming support, offering maximum flexibility and easy compatibility with other applications.

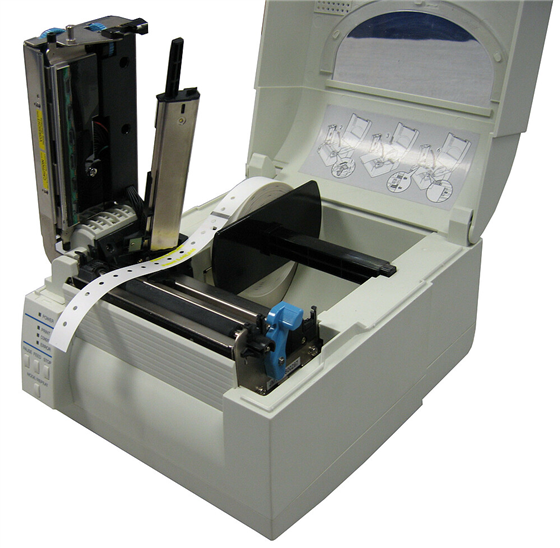

  • Handles a range of media types, including specialized labels and wristbands.
  • Powerful on-board 32 bit processor for fast output
  • 32Mb of RAM and 16Mb of flash

Featured Specs

  • Paper width: Variable paper width - 0.8 inches (19.5 mm) – 4.6 inches (118 mm)
  • Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Printing Speed: Fast print out - 6 inches per second (150 mm per second)
  • Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
  • Paper thickness: Paper thickness up to 0.250mm
  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • Low space requirement - integrated power supply enables clean work station
  • Case colour: Available in black or white
  • Energy: Internal power supply for reliability
  • Media sensor: Black mark sensor, Adjustable media sensor, Label gap sensor
  • Tear bar: Standard tear-bar for perforated tags
Placeholder image
Looking for Compatible Labels or Ribbon?

We offer a selection of labels and ribbon to meet any need. Having trouble finding the label you need? Give our Label Selector Tool a try or give us a call! We have people ready to help.

Printing Technology
Direct Thermal
Resolution
203 dpi
Print Speed (maximum)
6 inches per second (150 mm/s)
Print Width (maximum)
4 inches (104 mm)
Media Width (min to max)
0.5 - 4.6 inches (12.5 - 118 mm)
Media Thickness (min to max)
63.5 to 254 µm
Media Length (min to max)
0.25 to 99.99 inches (6.35 to 2539.74mm)
Roll Size (max), Core Size
Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)
Mechanism
Hi-Lift™ metal mechanism with wide opening head
Media Sensor
Fully adjustable gap, notch and reflective black mark

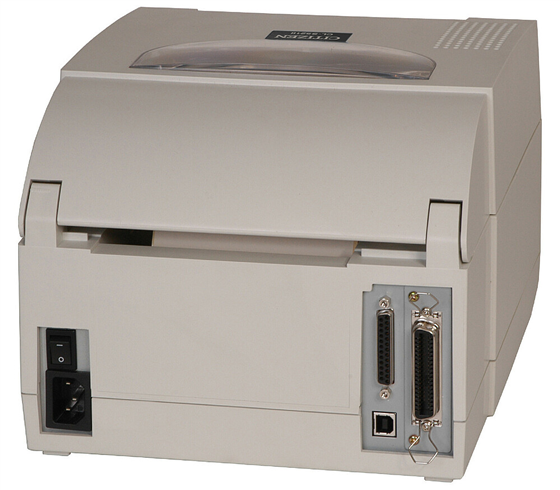

Main Interface
Dual Interface Serial (RS-232C), USB (version 2.0, full speed)

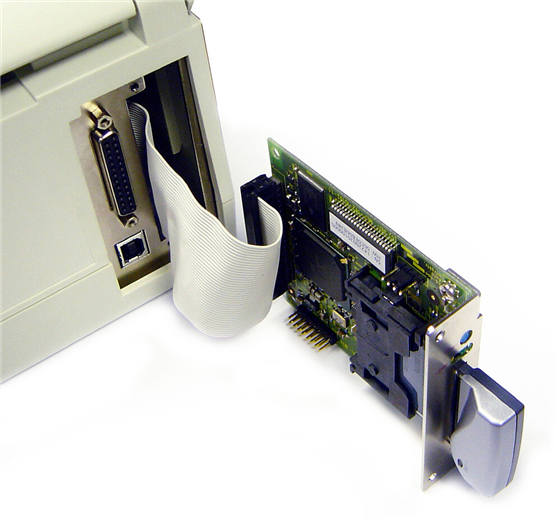

Optional interfaces
<li>Parallel (IEEE 1284 compliant) <li>Wireless LAN 802.11b and <li>802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps <li>Ethernet (10/100 BaseT)
Case
Hi-Open™ metal case with safe, soft-close feature
Control panel
4 buttons and 4 LEDs
Flash (Non-Volatile Memory)
16 MB total, 4MB available for user
RAM (standard Memory)
32MB total, 8MB available for user
Drivers and software
Free-of-charge from website, including support for various platforms
Emulations (Languages)
<li>Citizen Original Commands <li>Datamax® DMX <li>Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations <li>Zebra® ZPL2® <li>CBI™ BASIC Interpreter <li>EPL-2®
Size (W x D x H) and Weight
231 x 289 x 183mm, 3.6 Kg
Warranty
2 years on printer. 6 months or 30 Kms on printhead
Cutter
Guillotine type, Dealer Installable
CL-S521II Spec Sheet
Download
CL-S521II User Manual
Download
Driver for CL-S521II
Download

Shop CL-S521II/CL-S531II Windows Models

CL-S521IINNUBK

CL-S521II Direct Thermal, 203 DPI, Serial &amp; USB, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

Serial, USB

$371.00

CL-S521II-EPUBK-C

CL-S521II Direct Thermal, 203DPI, Premium LAN, Serial &amp; USB, Cutter, Gray

DPI:

203

Extra Features:

Cutter

Print Method:

Direct Thermal

Interface:

Premium LAN, Serial, USB

$665.00

CL-S521II-EPWSUBK

CL-S521II Direct Thermal, 203 DPI, Premium LAN, WiFi Short Range, Serial &amp; USB, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

Premium LAN, WiFi Short Range, Serial, USB

$645.00

CL-S521II-ETUBK

CL-S521II Direct Thermal, 203 DPI, Economy LAN, Serial &amp; USB, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

Economy LAN, Serial, USB

$477.00

CL-S521II-WUBK

CL-S521II Direct Thermal &amp; Thermal Transfer, 300 DPI, WIFI, Serial &amp; USB, Gray

DPI:

300

Print Method:

Thermal Transfer

Interface:

WiFi, Serial, USB

$533.00

CL-S521II-EPWLUBK

CL-S521II Direct Thermal, 203 DPI, Premium LAN, WiFi Long Range, Serial &amp; USB, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

Premium LAN, WiFi Long Range, Serial, USB

$649.00

CL-S521II-EPUBK

CL-S521II Direct Thermal, 203DPI, Premium LAN, Serial &amp; USB, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

Premium LAN, Serial, USB

$547.00

CL-S521II-EUBK

CL-S521II Direct Thermal, 203DPI, LAN, Serial &amp; USB, Gray

Interface:

LAN, Serial, USB

DPI:

203

Print Method:

Direct Thermal

$499.00

CL-S521II-EUBK-C

CL-S521II Direct Thermal, 203 DPI, LAN, Serial &amp; USB, Cutter, Gray

DPI:

203

Extra Features:

Cutter

Print Method:

Direct Thermal

Interface:

LAN, Serial, USB

$610.00

CL-S521II-EUBK-P

CL-S521II Direct Thermal, 203DPI, LAN, Serial &amp; USB, Peeler, Gray

DPI:

203

Print Method:

Direct Thermal

Interface:

LAN, Serial, USB

Extra Features:

Peeler

$610.00

CL-S521IINNUBK-C

CL-S521II Direct Thermal, 203DPI Serial, USB, Cutter, Gray

DPI:

203

Extra Features:

Cutter

Print Method:

Direct Thermal

Interface:

Serial, USB

$489.00

CL-S521IINNUBK-P

CL-S521II Direct Thermal, 203DPI, Serial &amp; USB, Peeler, Gray

DPI:

203

Print Method:

Direct Thermal

Extra Features:

Peeler

Interface:

Serial, USB

$450.00

CL-S531II-EUBK

CL-S531II Direct Thermal, 300 DPI, LAN, Serial &amp; USB, Gray

DPI:

300

Print Method:

Direct Thermal

Interface:

LAN, Serial, USB

$573.00

CL-S531II-EUBK-C

CL-S531II Direct Thermal, 300 DPI, LAN, Serial &amp; USB, Cutter, Gray

DPI:

300

Extra Features:

Cutter

Print Method:

Direct Thermal

Interface:

LAN, Serial, USB

$684.00

CL-S531II-EUBK-P

CL-S531II Direct Thermal, 300 DPI, LAN, Serial &amp; USB, Peeler, Gray

DPI:

300

Print Method:

Direct Thermal

Interface:

LAN, Serial, USB

Extra Features:

Peeler

$684.00

CL-S531IINNUBK

CL-S531II Direct Thermal, 300 DPI, Serial &amp; USB, Gray

DPI:

300

Print Method:

Direct Thermal

Interface:

Serial, USB

$450.00

CL-S531IINNUBK-C

CL-S531II Direct Thermal, 300 DPI, Serial &amp; USB, Cutter, Gray

DPI:

300

Extra Features:

Cutter

Print Method:

Direct Thermal

Interface:

Serial, USB

$567.00

CL-S531IINNUBK-P

CL-S531II Direct Thermal, 300 DPI, Serial &amp; USB, Peeler, Gray

DPI:

300

Print Method:

Direct Thermal

Extra Features:

Peeler

Interface:

Serial, USB

$528.00
