Citizen CL-S400DT Ticketing Printer

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4

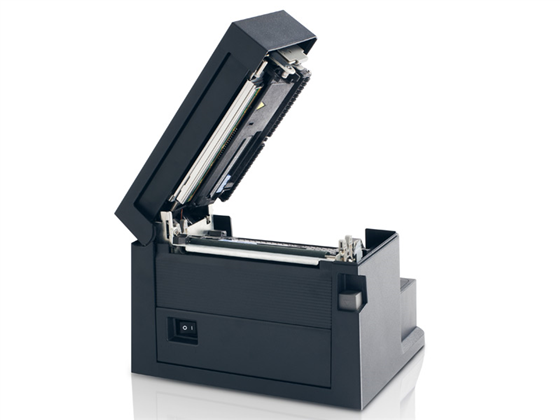

The Citizen CL-S400-DT desktop printer is a high performing direct thermal printer in a very compact form factor. Ideal for ticket printing, the CL-S400DT has an adjustable media sensor that can handle tags with unusual cut-outs or black marks. Citizen's unique metal Hi-Lift™ mechanism allows for easy loading of media and the LCD panel makes configuration quick and simple. The CL-S400DT ticketing printer is Energy Star certified and comes with a 2 year printer, 1 year print head warranty.Features

  • 203 dpi Resolution
  • Prints 6 inches per second
  • Datamax® and Zebra® Cross-Emulation™
  • Print Width (max) 4.10 inches
  • Media Width 0.77 inches to 4.65 inches
  • Roll Size (max) 5 inches, Core size: 1 inch
  • Serial and USB Interface - Standard
  • Energy Star Certified
  • Optional Auto-Cutter

See SeaGull BarTender Pro for Label Creation Software

Tech note: User will need to play with the offset in the printer driver to align labels correctly.

Print Method
Direct Thermal
Colors Options
Black
Interfaces

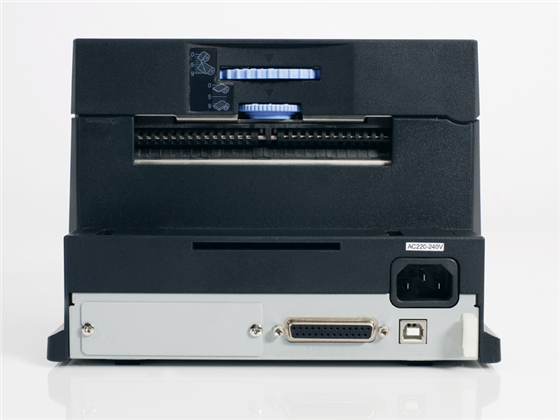

Standard: Serial (RS-232C), USB (version 2.0, full speed)<br>Optional: Parallel (IEEE-1284), Ethernet (10/100 BaseT)
Dimensions
206 x 149 x 150mm
Print Speed
6 inches per second (150 mm/s) max
Emulation
Datamax® I-Class™ & DMX400™<br>Zebra® ZPL-II ®<br>Cross-Emulation™ automatic detection, BASIC interpreter for data steam processing and ticketing emulations
Print Resolution
203 dpi
Maximum Print Area
4.10 inches (104.1 mm)
Paper Dimensions
0.25 inches to 32.00 inches (6.35 mm to 812.8 mm)
Paper Width (min to max)
0.77 inches to 4.65 inches (19.5 mm to 118.0 mm)
Paper Thickness
0.0025 - 0.01 inches (0.0635 - 0.254 mm)
Roll Size
5 inches (125 mm) diameter with standard holder.
Core Diameter
1inch (25mm)
Auto Cutter
Optional on some models
Warranty
2 Years for Printer<br>1 Year for Print Head, Peeler and Cutter
Data Sheet
Download
Data Sheet - sp
Download
CL-S400DT Manual
Download
Driver - Windows
Download
Driver - Mac OS X
Download
