Star Micronics BSH-32U High-Density

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6

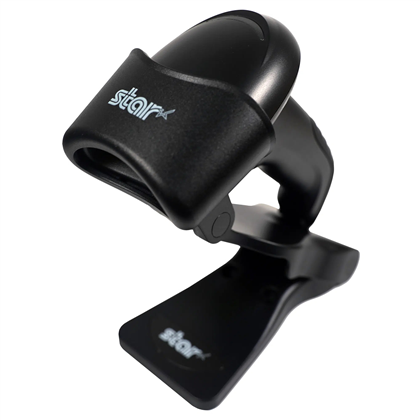

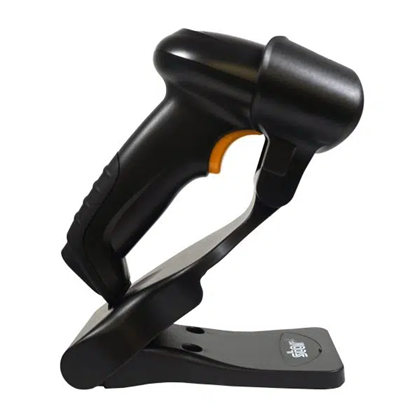

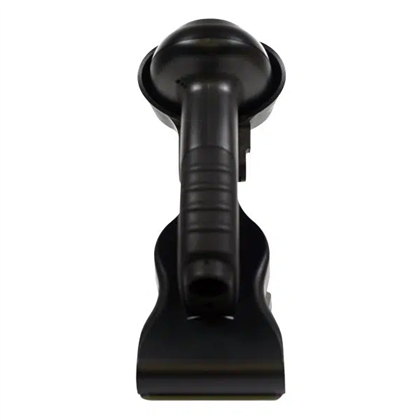

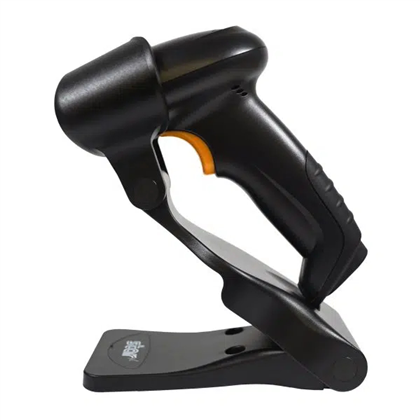

Premium USB Handheld Barcode Scanner

The BSH-32U from Star Micronics is a premium handheld USB barcode scanner that combines high performance with robust durability. Equipped with a powerful CPU and a super high-resolution image sensor, this scanner excels in various environments, including retail stores, bars and restaurants, event venues, and more. It adeptly reads and parses both 1D and 2D barcodes from paper, digital screens, and uneven surfaces, making it ideal for scanning IDs, driver’s licenses, QR codes, and product labels. The BSH-32U’s design is stylish and practical, featuring an IP42-rated, drop-resistant (1.5m) housing for enhanced durability. Available in smooth black and Star-branded, it seamlessly plugs into any point-of-sale (POS) system, including Star Micronics’ mPOS product line, the mCollection®. The BSH-32U USB barcode scanner is a versatile solution for any business seeking accuracy and efficiency in its scanning operations.

Key Features - BSH-32U Premium Handheld 1D/2D USB Barcode Scanner

  • High-resolution CMOS captures high-density, high-volume, & distorted barcodes
  • High-Performance CPU: Can read and parse barcodes (IDs, driver’s licenses)
  • Scans on paper, uneven media, or screen
  • Access to StarSCAN configuration utility for customized functionality
  • Ergonomic, IP42-rated design and 1.5m drop resistance
  • 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
  • Plugs directly into any POS system, including Star’s mCollection® products
  • Star branded for superior quality guaranteed
  • Scanner stand included

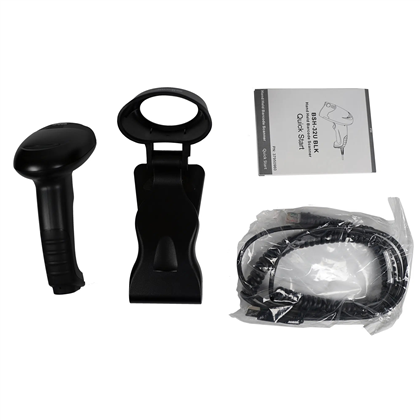

Included in Box

  • Scanner
  • USB Cable
  • Stand
Sealing
Sealing IP42
Image Sensor
1280×800 (megapixel) CMOS
Color
Color Black
Resolution
≥3mil
Symbologies
<li><b>2D -</b>PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc.</li> <li><b>1D & OCR -</b> EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128</li> <li><b>Postal -</b>USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
Dimensions I Weight
113.4(W)×71.4(D)×158.0(H) mm |156g
Typical Depth of Field
<li>EAN-13: 45 mm-510 mm (13 mil)</li> <li>Code 39: 75 mm-220 mm (5 mil)</li> <li>PDF 417: 70 mm-215 mm (6.7 mil)</li> <li>Data Matrix: 50 mm-220 mm (10 mil)</li> <li>QR Code: 20 mm-330 mm (15 mil)</li>
Scan Angle
Pitch: ±55°, Skew: ±55°, Roll: 360°
Field of View
Horizontal 39°, Vertical 24°
Min Symbol Contrast
25%
Driver’s License Parsing
Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification.
Interface
RS-232, USB
Drop Resistance
1.5 m
Warranty
2 Year
BSH-32U Scanner Quickstart Guide
Download
BSH-32U Scanner Spec Sheet
Download
BSH-32U Scanner User Guide
Download
StarSCAN Configuration Utility
Download
