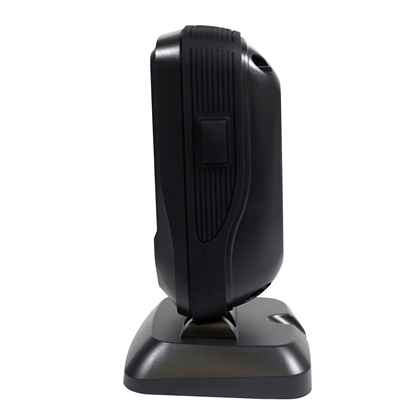

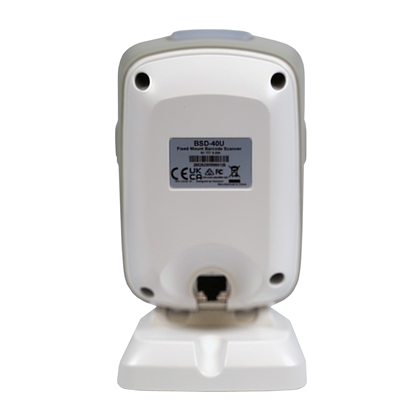

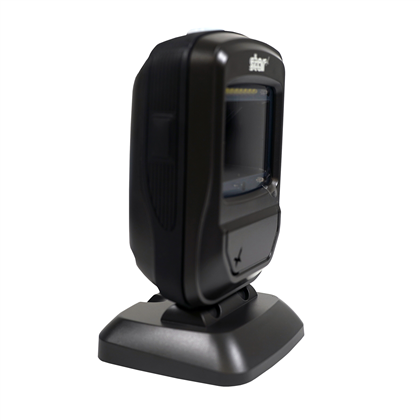

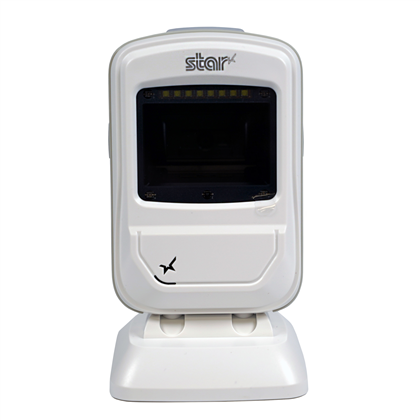

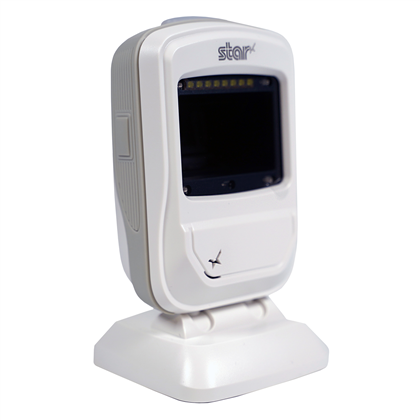

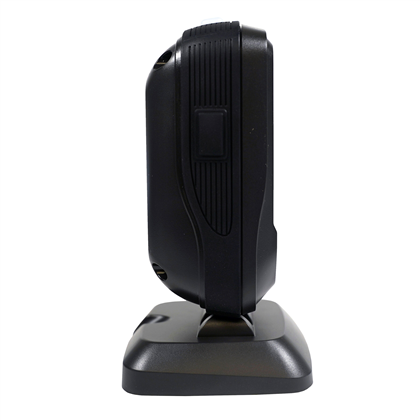

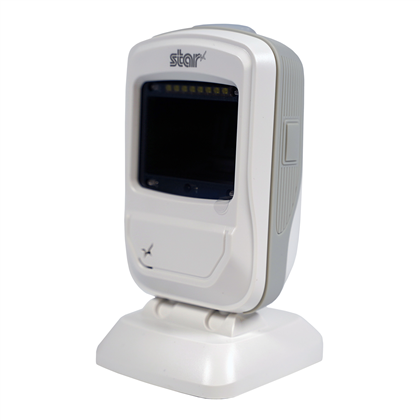

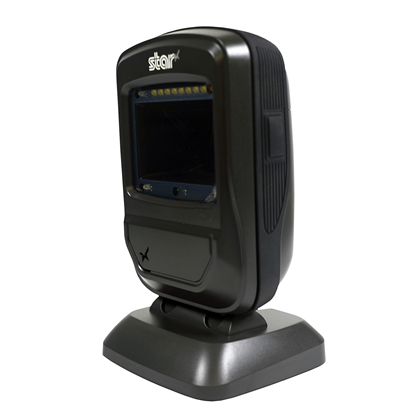

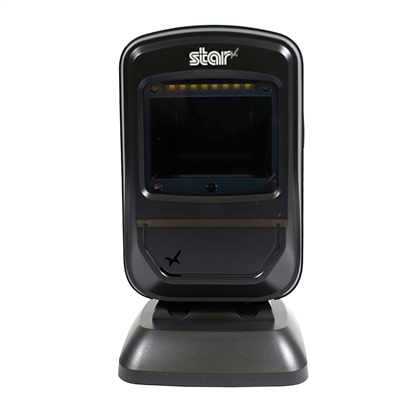

Star Micronics BSD-40U

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7
small product image8
small product image9
Premium USB Desktop Barcode Scanner

The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner’s advanced technology extends to reading and parsing data from IDs and driver’s licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. With an IP52-rated construction, the BSD-40U is built for durability and comes with a 2-year warranty with options to extend. Sleek and versatile, it’s compatible with iOS, Android, and Windows platforms and plugs directly into any of Star’s mCollection® products, making it a perfect fit for any business seeking reliable POS hardware solutions.

Key Features - BSD-40U Desktop 1D/2D Barcode Scanner
  • High-resolution CMOS captures high-density, high-volume, & distorted barcodes
  • High-Performance CPU: Can read and parse barcodes (IDs, driver’s licenses)
  • No driver downloads needed with iOS, Android, and Windows
  • Superior motion tolerance (2.5m/s)
  • Large field of view (horizontal 51°, vertical 32°)
  • Access to StarSCAN configuration utility for customized functionality
  • Infrared sensor for increased speed and productivity even in dark environments
  • IP52-rated design and 1.2m drop resistance
  • 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
  • Compatible with any POS software, including Star’s mCollection® products (mC-Print2/3 & mPOP®)
  • Star branded for superior quality guaranteed
Included in Box
  • Scanner
  • Stand
  • Image Sensor
    1280×800 (megapixel) CMOS
    Illumination
    White LED
    Aiming
    Red LED
    Symbologies
    <li><b>2D:</b> PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec</li> <li><b>1D:</b> Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)</li>
    Resolution*
    ≥3 mil
    Typical Depth of Field*
    <li>EAN-13: 10 mm-210 mm (13 mil)</li> <li>Code39: 85 mm-220 mm (5 mil)</li> <li>QR Code: 10 mm-180 mm (15 mil)</li>
    Scan Angle
    Pitch: ±50°, Roll: 360°, Skew: ±45°
    Field of View
    Horizontal 51°, Vertical 32°
    Min Symbol Contrast
    25%
    Driver’s License Parsing
    Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification.
    Interface
    USB, RS232
    Operating Voltage
    5VDC±5%
    Dimensions (L×W×H)
    82mm x 80mm x 147mm
    Weight
    297g
    Colors
    Black, White
    Notification
    Beep, LED
    Operating Temperature
    -20°C to 60°C (-4°F to 140°F)
    Storage Temperature
    -40°C to 70°C (-40°F to 158°F)
    Humidity
    5%~95% (non-condensing)
    ESD
    ±14 KV (air discharge); ±8 KV (contact discharge)
    Drop
    1.2 m
    Sealing
    IP52
    BSD-40U Barcode Scanner Spec Sheet
    Download

    Shop BSD-40U Windows Models

    37950900

    BSD-40U 2D Presentation Barcode Scanner, USB Cable, Black, mC-Print and mPOP Compatible

    $184.91

    37950910

    BSD-40U 2D Presentation Barcode Scanner, USB Cable, White, mC-Print and mPOP Compatible

    $184.91

    Shop BSD-40U Accessories

    37955360

    Barcode Scanner Serial Interface Kit: Includes Serial Cable and Power Supply

    $58.08
