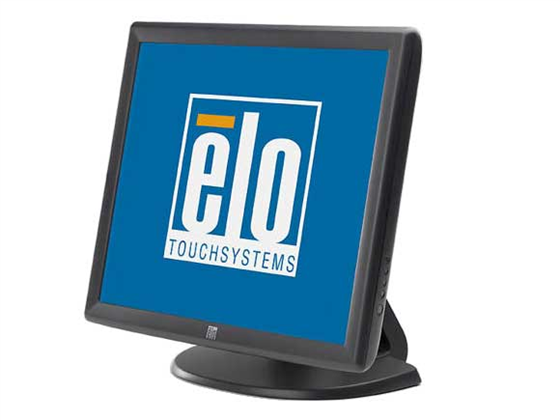

Elo TouchSystems 1915L

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3

The 1915L 19 inch LCD touch monitor is an affordable large format monitor for systems integrators and VARs which still maintains Elo’s high standards of quality. The screen provides optimum real-estate for complex touch applications with many buttons and also excels at accessible applications for the visually impaired which must be easier to see or read.

Features

  • Antiglare surface treatment
  • Beige or dark grey color options
  • ROHS compliant
  • 1280 x 1024 at 50 Hz optimal resolution
  • 3 year warranty
Display Type
19 Inch Active Matrix TFT LCD
Color Options
Dark Grey
Interface
USB or Dual Serial/USB
Style
Desktop - Stable Tilt Base
Optimal Resolution
1280 x 1024 at 60 or 75 Hz
Aspect Ratio
5:4
Contrast Ratio
800:1 (typical)
Brightness
LCD panel: 300 nits - with AccuTouch: 240 nits - with APR: 270 nits - with IntelliTouch: 270 nits
Colors
16.7 million colors with dithering
Weight
17.42 lb (7.90 kg)
Dimensions
16.9 (w) x 15.21 (d) x 8.15 (h) in.
Mounting Options
Removable base; 100 mm VESA mount; threaded-through mounting holes, under base
Operating Temperature
0°C to 40°C
Power Supply
Internal, with jack to accept power from optional external brick
Monitor Input Voltage
AC input (line) voltage: 85-265 VAC, 47-63 Hz - DC input (line) voltage: 12.0 VDC ±0.75V
Power Dissipation
50 W max
Warranty
3 Years
Data Sheet
Download
Manual
Download
Optional Advance Unit Replacement Plan
Download

Shop 1915L Models

E266835

1915L 19" IntelliTouch LCD Touch Monitor, Dark Gray. Antiglare Surface Treatment, ROHS Compliant. VGA(DB-15) for Video. USB & RS232(DB-9) for Touch. 1280 x 1024.

Touch Type:

SAW (IntelliTouch)

$1007.14

E437227

Elo 1915L 19 Inch LCD Touchmonitor: Dark Grey with Acoustic Pulse Recognition (APR) Touch Technology, Antiglare Surface Treatment, ROHS Compliant, USB Interface

Touch Technology:

Acoustic Pulse Recognition

Color:

Dark Grey

Interface:

USB

$690.00

E607608

1915L 19" LCD AccuTouch, Touch Monitor, Dark Gray. Antiglare Surface Treatment, ROHS Compliant. VGA(DB-15) for Video. USB & RS232(DB-9) for Touch. 1280 x 1024.

Touch Type:

Resistive (AccuTouch)

$997.78

Shop 1915L Accessories

758588-000

Elo 1 Year Extended Warranty Service for 22 Inch Widescreen Monitor

$58.00

930057-000

Elo 2 Year Extended Warranty Service for 22 Inch Widescreen Monitor

$133.00

C35148-000

Elo Advanced Unit Replacement Service (Must be purchased with an extended warranty service.)

$38.00

D82064-000

Stylus Pen for use with IntelliTouch Touchscreen Monitor

$34.21
