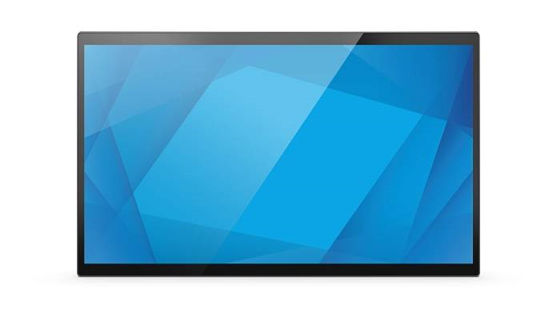

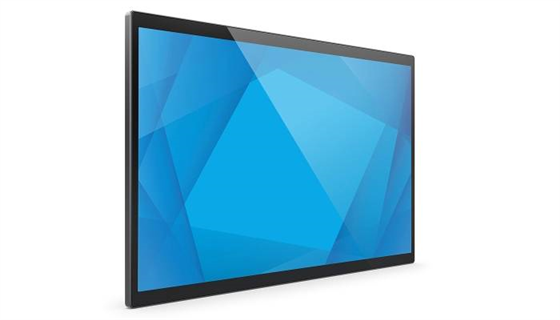

Elo TouchSystems 1504LS 15inch

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2
small product image3
small product image4
small product image5
small product image6
small product image7

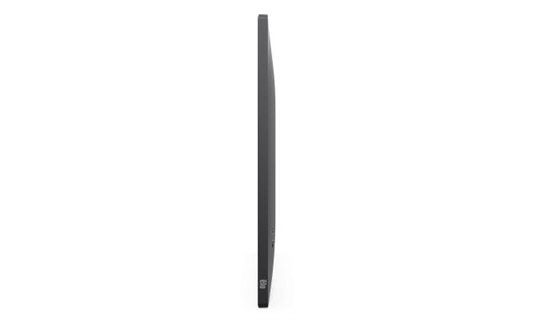

Razor thin design. Brilliant touchscreen.

Built to be one of the thinnest commercial-grade 15-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

The Elo 1504LS 15-inch Full HD touchscreen monitor delivers commercial-grade durability, brilliant display clarity with state-of-the-art optical bonding and a minimalistic design perfect for any application. Backed by a three-year warranty, the 1504LS offers an energy efficient TouchPro® PCAP touchscreen enabling up to 10 simultaneous touches. With a clean design aesthetic, dual built-in speakers, flexible mounting options and increased viewing comfort with low blue light, the 1504LS touchscreen is well-suited for POS, HMI, interactive digital signage and self-service.

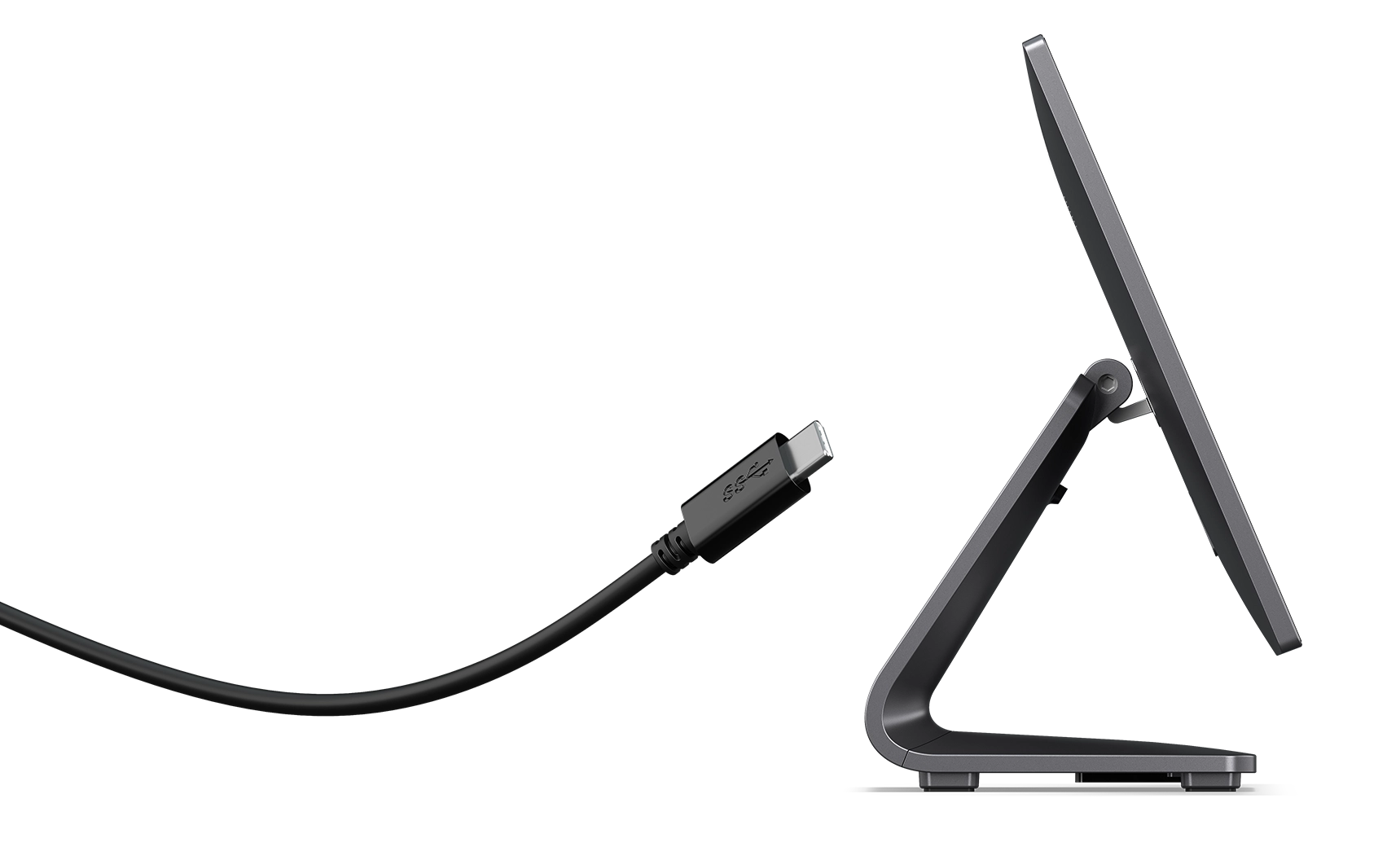

Streamline setup with USB-C to enable power, video and touch integration all in a single cable.

Power, Video & Touch in a Single Cable

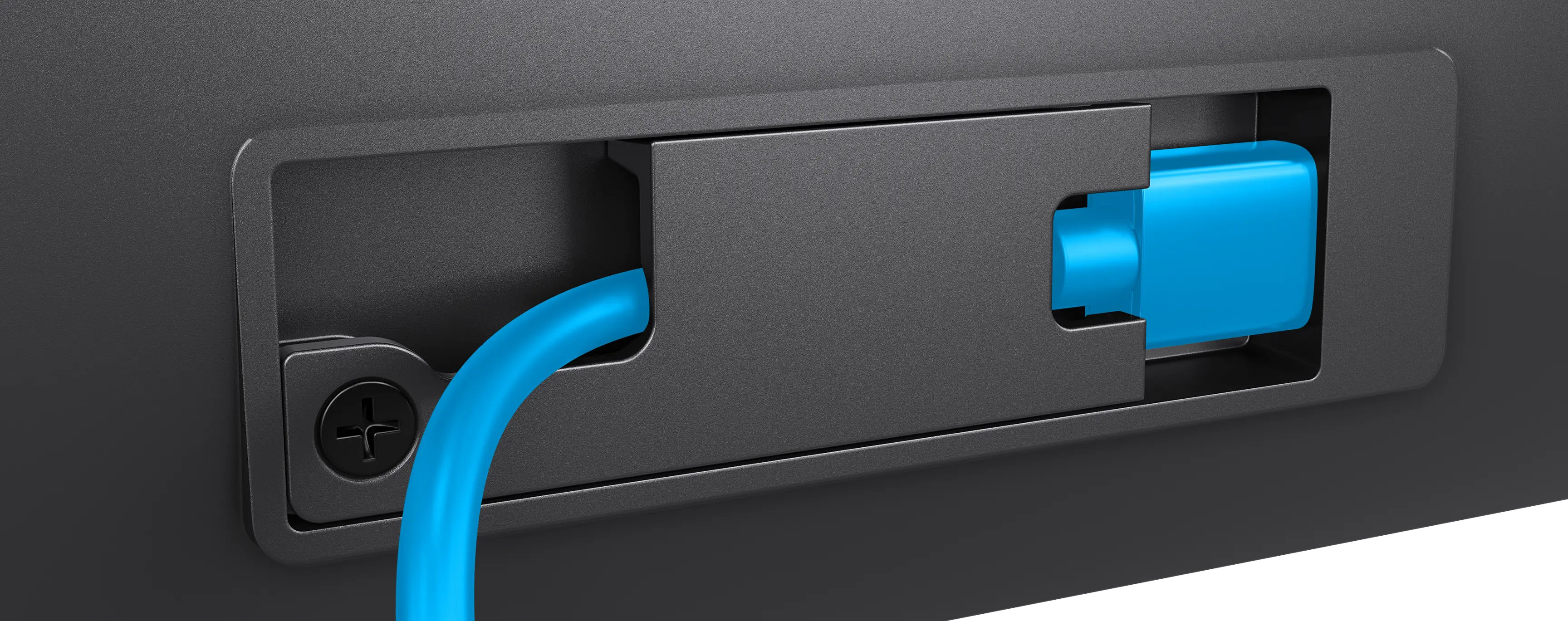

Secure your cables into place
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

A Secured Cable

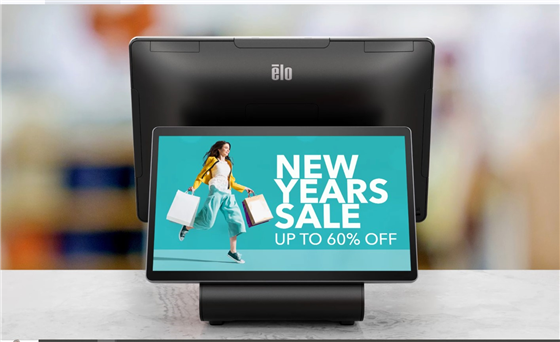

A clean slate for touch experiences.

Arrayed Display of Options

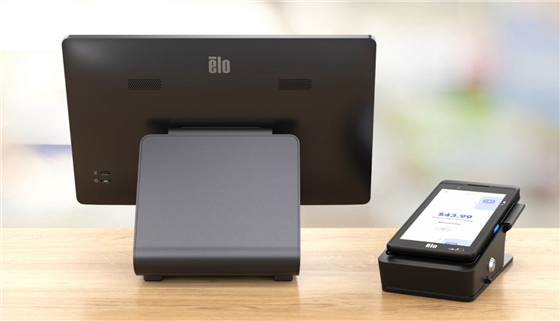

The perfect pairing for your POS terminal.
Whether you want to pair the 1504LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.

Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55'' x 7.62'' / 344.16 mm x 193.59 mm
Resolution
1920 x 1080
Other Supported Resolutions
640x480 60Hz <br>800x600 60Hz <br>1024x768 60Hz <br>1280x800 60Hz <br>1280x720 60Hz <br>1280x1024 60Hz <br>1366x768 60Hz, 60Hz RB <br>1440x900 60Hz, 60Hz RB <br>1680x1050 60Hz, 60Hz RB <br>1920x1080 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
16.2 million
Brightness (typical)
Panel: 350 nits; TouchPro PCAP: 315 nits
Response Time-total (typical)
20 msec
Contrast Ratio
1000:1
Touch Interfaces
USB
Surface Treatment
Anti-glare
I/O Ports
USB Type-C connector (for power, video and touch)
Speakers
2 x 2W internal speakers
Video
USB Type-C connector <br>Input Video Horizontal Sync frequency range: 30 – 82KHz <br>Input Video Vertical Sync (frame rate) frequency range: 60Hz
Power
Power Delivery compatible via USB Type-C connector
Power Consumption (Typical)
ON (Default - 100% Brightness): 8W <br>SLEEP: 0.8 W <br>OFF: 0.15 W
Monitor Dimensions (without Stand)
Without VESA Adapter: 14.16" x 8.61" x 0.59" / 359.73 mm x 218.82 mm x 14.97 mm <br>With VESA Adapter: 14.16" x 8.61" x 0.79" / 359.73 mm x 218.82 mm x 19.97 mm
Shipping Box Dimensions
17.01" x 3.66" x 11.61" / 432 mm x 93 mm x 295 mm
Weight (Unpackaged)
2.45 lbs / 1.11 kg
Weight (Packaged)
4.21 lbs / 1.91 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated

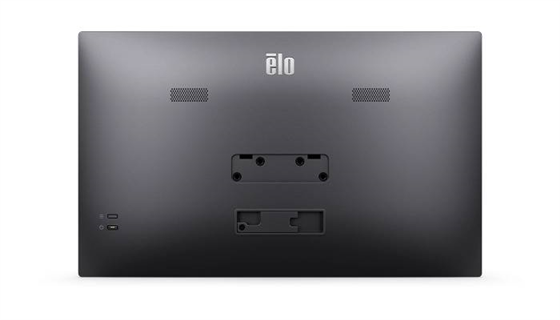

Mounting Options
VESA via 4-hole 75mm mounting adapter on rear of unit.
Other Features
Energy Star 8.0 <br>TUV Rhineland (Low Blue Light) <br>Power collection function via DDCCI
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247 <br>5 year warranty coverage - Elo P/N: E898449 <br>3 year warranty coverage + AUR - Elo P/N: E898648 <br>4 year warranty coverage + AUR - Elo P/N: E894921 <br>5 year warranty coverage + AUR - Elo P/N: E895125
Impact Protection
IK07
What's in the Box
Touchmonitor <br>Quick Install Guide <br>USB Type-C cable <br>75mm VESA adapter (assembled)
Optional Peripherals
PCAP Stylus Pen - Elo P/N: E066148
1504LS 15 inch Spec Sheet
Download
1504LS 15 inch User Manual
Download
