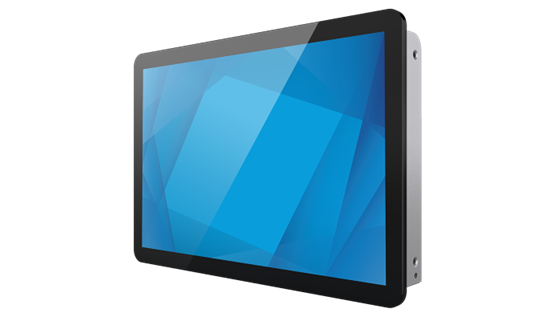

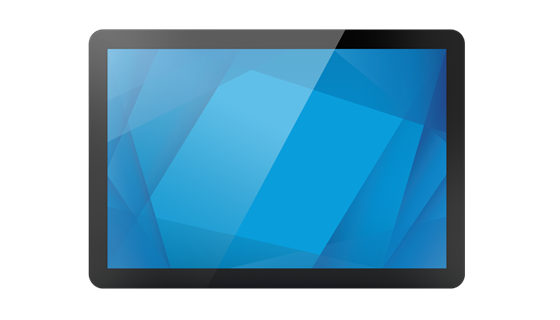

Outdoor Open-Frame Touchscreen Display
Elo’s 1099L 10-inch outdoor open-frame touchscreen monitor has you covered 24/7
With wide viewing angle technology and 1000 NITs of brightness. The IK09, vandal-proof
outdoor display offers direct sunlight readability viewable with polarized sunglasses and
extended operating temperatures. From payment and ticketing machines to signage
and charging stations, the brilliant, optically bonded weatherproof monitor offers locking
connectors and supports 12v-24v DC for easy and secure integration into an enclosure.
The 1099L provides outstanding image clarity and light transmissivity, as well as stable,
drift-free operation for accurate touch responses making it well-suited for almost any
commercial kiosk application.
- 10-inch weatherproof touchscreen that covers you from day to night.
Built to perform outdoors, Elo’s 1099 weatherproof
monitor offers IP66 and NEMA 4X when integrated
into an enclosure as well as IK09 impact protection.
With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital
signage display can withstand harsh physical and
thermal requirements.
- Sunlight readable monitor.
To provide unmitigated performance from day to night, the
ambient light sensor automatically adjusts the display’s
brightness to optimize power consumption, extend the life
of the display and enhance the viewing experience.
- Outdoor kiosk solutions.
Elo’s 1099L outdoor monitor enables
you to create reliable outdoor kiosks that
will capture audiences and differentiate
your sunlight readable outdoor display:
•Charging Stations
•Payment & Ticketing
•Vending Machine
•Human Machine Interface
•Order Pickup Lockers
Simplify kiosk deployment and management.
Transform Elo touchscreens into an affordable, scalable, single-architecture media platform with EloView® and the Android Backpack. With simplified content-delivery and remote-management capabilities, managing isolated outdoor kiosks out-of-the-box is simplified.
Powerful computing.
The Elo Backpack delivers a powerful, commercial-
grade Android 10 compute engine designed to simplify
the deployment of content, websites and Android-
based apps across your interactive experiences.
Purpose-built to fit in compact spaces, the Elo Backpack
boasts a small footprint in both size and weight to
secure inside any kiosk with the built-in VESA mount.
Scaling Elo’s commercial Android platform across sizes
and form factors has never been easier.
Take advantage of Elo's feature-rich Android ecosystem.
With easy-to-use development kits, robust
management tools, world-class life cycle management,
and a comprehensive security model, Elo helps
companies deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.
Touch thru glass enabled with PCAP.
Our TouchPro® PCAP technology supports touch-thru
functionality for installations requiring a front layer of
glass up to 6 mm thick or outdoor touchscreen kiosk
solutions requiring adherence to specific IP/IK ratings.
Whether you need a flush-mounted display or one fully
encased in glass, our robust PCAP touchscreen is
purpose-built for outdoor durability.
Flexibility for your install.
Elo’s waterproof touchscreen monitor can be mounted
in landscape, portrait and upward facing orientations,
providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether end users are
viewing up close or from a distance, with or without
polarized sunglasses, our optically bonded outdoor
digital signage display offers what you need while
maintaining optimal clarity for the viewing experience.
Included in Box
1099L
HDMI cable with screw-locked type
VGA Cable
Remote OSD
Touch USB Cable with screw-locked type
Quick Install Guide
Flush Mount Brackets w/Screws
EEI Label
Active Display Area
8.54" x 5.33" / 216.96 mm x 135.60 mm
Native Resolution
1280x800
Other Supported Resolutions
640x480 60Hz; 720x400 70Hz; 800x600 60Hz; 1024x768 60Hz; 1280x800 60Hz
Number of Colors
16.7 million
Number of Touches
5-touch with USB, 2-touch with RS232, 2-touch with touch-thru
Brightness (typical)
With TouchPro PCAP: 1000 nits
Response (typical)
25 msec
Viewing Angle
Horizontal: 85°/170°; Vertical: 85°/170°
On-Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
<li><b>Controls:</b> Menu, Up, Down, Select, Power
Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD
Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch
Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time</li>
<li><b>Languages:</b> English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese</li>
<li><b>Lockouts:</b> OSD, Power</li>
I/O Ports
Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort
Video
<li>HDMI V1.3 Type A receptacle for HDMI input</li>
<li>Analog VGA on Female DE-15 (DB-15) connector (Support RS232 touch via E810917)</li>
<li>DisplayPort V1.1a - Supports later versions of DisplayPort video input</li>
<li>Input Video Horizontal Sync frequency range: 31.5 – 80 KHz</li>
<li>Input Video Vertical Sync (frame rate) frequency range: 60-75Hz</li>
Power
<li>External DC - Optional power brick (sold separately)</li>
<li>Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm
(+/- 0.2mm) barrel depth)</li>
<li>Monitor input voltage range: 12V – 24V DC +/- 5%</li>
<li>Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm
(+/- 0.5mm) barrel length)</li>
<li>Adapter input voltage range: 100-240 VAC</li>
<li>Input frequency: 50-60 Hz</li>
Power Consumption
Monitor + adapter - ON: 23 W; SLEEP from PC: 1.5 W ; OFF: 1.5 W
Temperature
Operating: -20 °C to 60 °C (-4 °F to 140 °F); Storage: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity
Operating: 10% to 90%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
Dimensions
10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm
Shipping Dimensions
13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm
Weight
Unpackaged: 1.67 kg / 3.68 lbs, Packaged: 3.6 kg / 7.94 lbs
Mounting Options

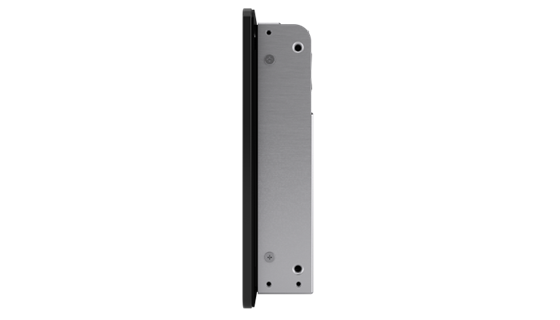

75mm VESA mount on rear of unit; 2 hole mounting interface on all four sides; Flush mount with included brackets
MTBF
50,000 hours demonstrated
Agency Approvals
Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States
UL, FCC; International CB; Russia EAC; RoHS, China RoHS, WEEE
Compliance
GLI 27 kV air / 8 kV contact ESD compliance; UL ball-drop compliance; IK09 impact compliance
Other Features

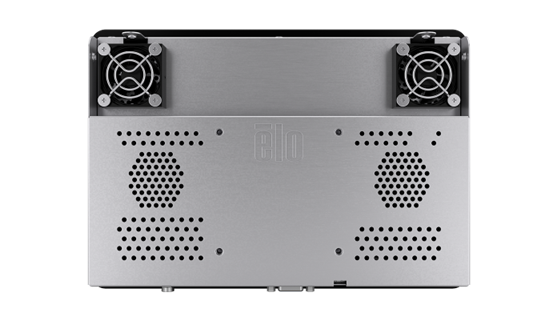

Viewable with polarized sunglasses in portrait and landscape orientations. Ambient light sensor. Thermal sensor. External fans (Automatically controlled)
What’s in the Box
1099L, HDMI Cable (screw-locking type), VGA Cable, OSD Remote, Touch USB Cable (screw-locking type), QIG, Flush Mount Brackets with screws, EEI
Label, Japan Class-B TM info sheet
