Elo TouchSystems 1064L 10-inch
Industrial‑Grade Open Frame Touch Display

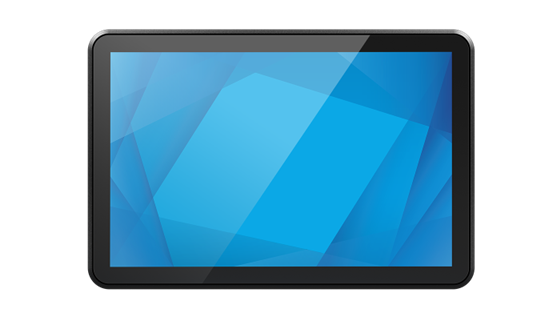

Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro PCAP display
The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Enable power, video and touch with a single USB‑C cable.
Durable, energy efficient touchscreen.
- UL62368 & IK08 compliance
- Chemically-strengthened glass
- Ready for 24/7 use
- Wide operating voltage range (12V‑24V)
- Energy Star 8.0 certified

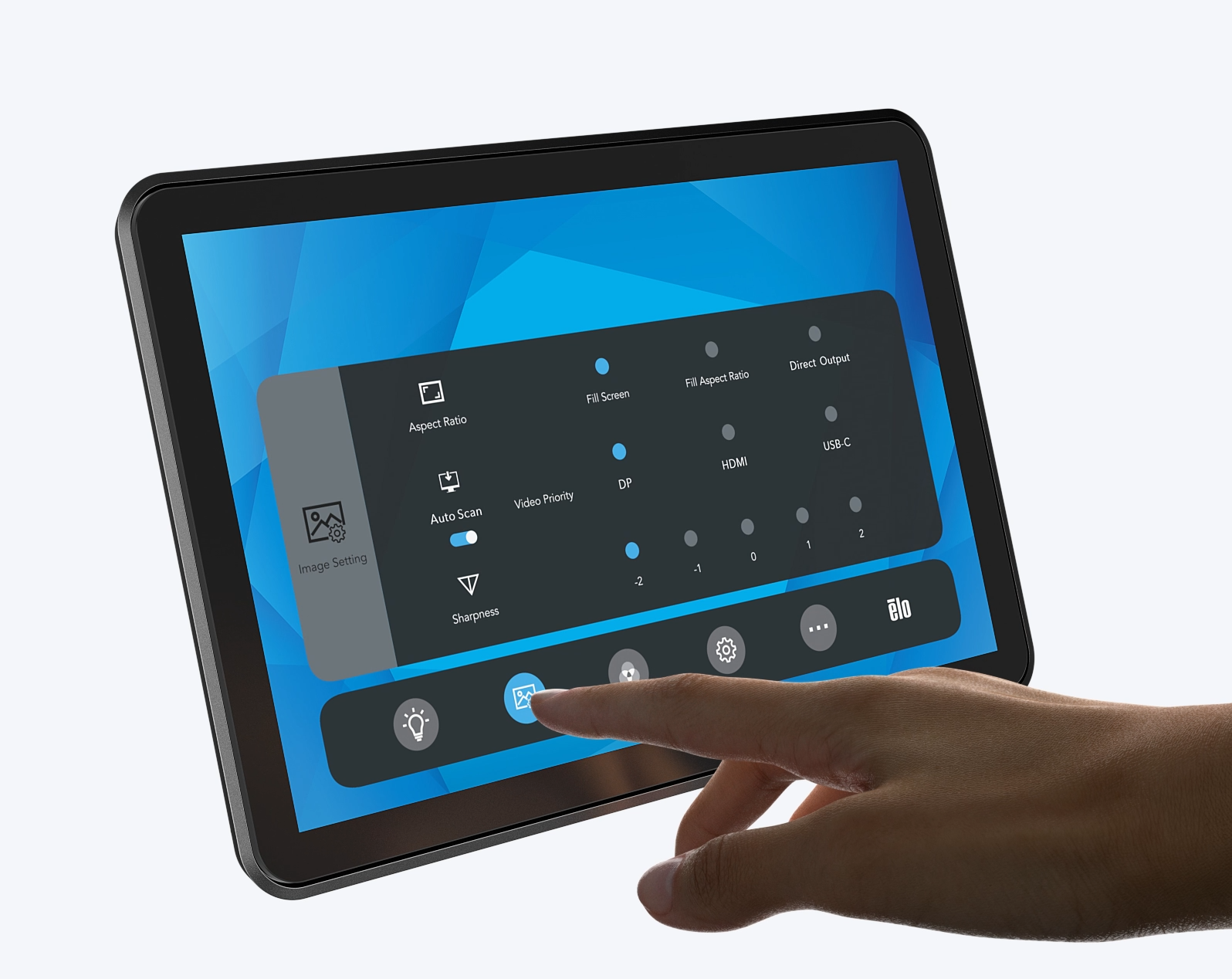

Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 10-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Shop 1064L 10-inch Windows Models
E971060
Elo 1064L 10.1-inch HD Optically bonded LCD (LED Backlight), Open Frame, Projected Capacitive 10 Touch, Zero-Bezel, USB-C, HDMI & Display Port video interface, USB-C touch, Clear, No power brick
Shop 1064L 10-inch Accessories
E005277
North America Power Adapter and Cable Kit, 12V, 4.16A, 50W
E066148
Stylus Pen, For Elo Touch PCAP Systems
E538507
Cable kit, DVI-D to HDMI converter
