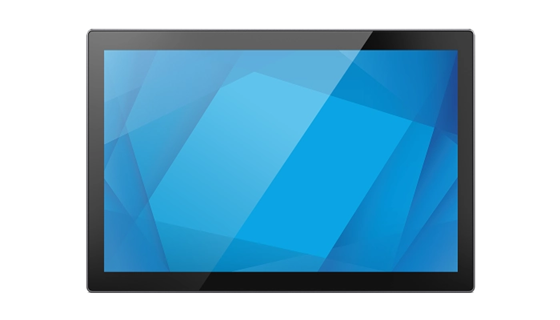

Elo TouchSystems 1004LS 10inch

Name: Elo TouchSystems 1004LS 10inch(Windows)
Brand: Elo TouchSystems
Price: 447.37 USD
Availability: InStock

Images may not reflect the actual product

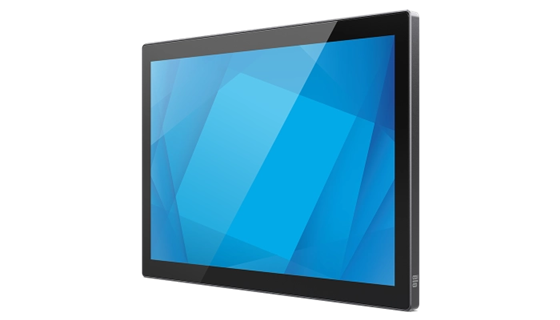

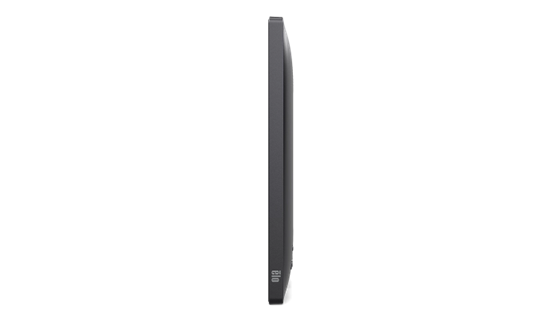

Razor thin design. Brilliant touchscreen.

Built to be one of the thinnest commercial-grade 15-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

The Elo 1004LS 10-inch Full HD touchscreen monitor delivers commercial-grade durability, brilliant display clarity with state-of-the-art optical bonding and a minimalistic design perfect for any application. Backed by a three-year warranty, the 1004LS offers an energy efficient TouchPro® PCAP touchscreen enabling up to 10 simultaneous touches. With a clean design aesthetic, dual built-in speakers, flexible mounting options and increased viewing comfort with low blue light, the 1004LS touchscreen is well-suited for POS, HMI, interactive digital signage and self-service.

Streamline setup with USB-C to enable power, video and touch integration all in a single cable.

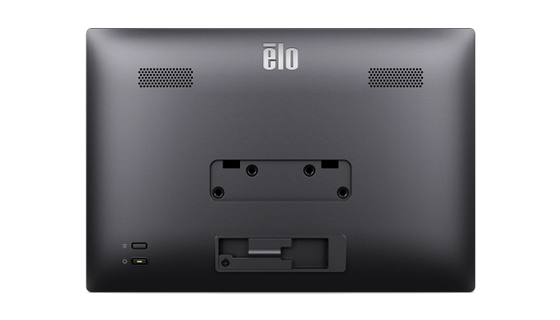

Secure your cables into place
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

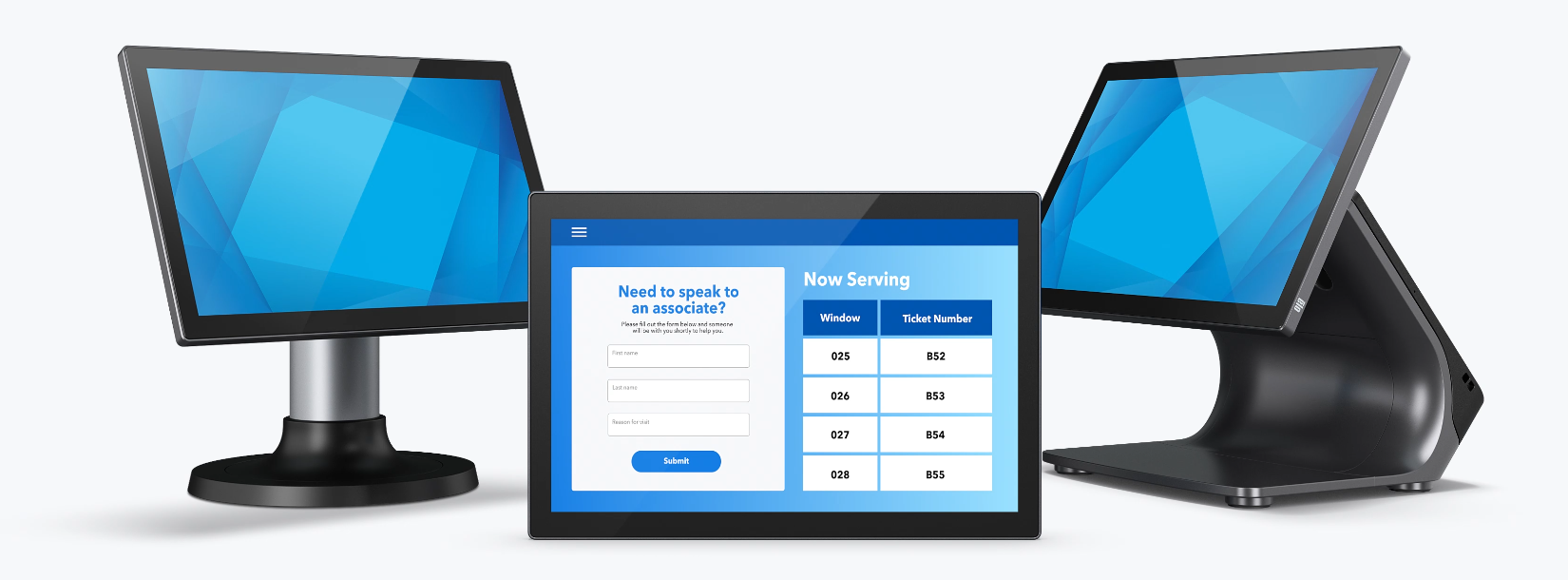

A clean slate for touch experiences.

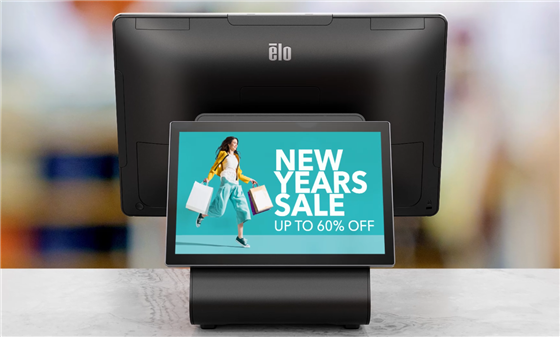

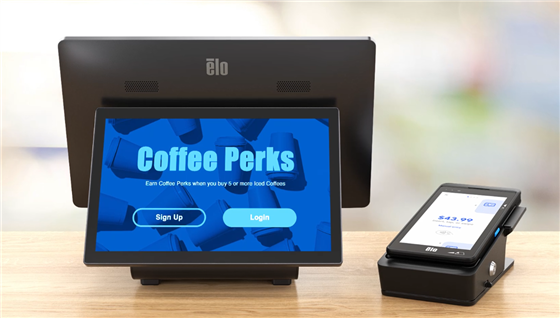

The perfect pairing for your POS terminal.
Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.

Color

Dark gray

Diagonal Size

10.1" / 256.54 mm

Active Touch Area

8.54" x 5.34" / 216.96 mm x 135.60 mm

LCD Technology

Active matrix TFT LCD

Touch Technology

TouchPro PCAP

Number of Touches

10 Touches

Aspect Ratio

16:10

Native Resolution

1280 x 800

Preset Video Timings

640x480 60Hz, 800x500 60Hz, 800x600 60Hz, 1024x768 60Hz, 1280x800 60Hz, 1280x720 60Hz, 1280x1024 60Hz, 1366x768 60Hz, 60Hz RB, 1440x900 60Hz, 60Hz RB, 1680x1050 60Hz, 60Hz RB, 1920x1080 60Hz

Number of Colors

16.7M

Brightness (typical)

Panel: 400 nits; with TouchPro PCAP: 360 nits

Response Time (Tr + Tf) (typical)

30 msec

Viewing Angle (typical)

Horizontal: 85°/85° or 170° total; Vertical: 85°/85° or 170° total

Contrast Ratio (typical)

800:1

On-Screen Display (OSD)

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram. Controls: Menu, Power Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power

I/O Ports

USB Type-C connector

Video

USB Type-C connector Input Video Horizontal Sync frequency range: 30 – 60KHz Input Video Vertical Sync (frame rate) frequency range: 60Hz

Speakers

2 x 2W internal speakers

Power

Power Delivery compatible via USB Type-C connector Input range: (5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A) ON (Default - 100% Brightness): 6.6W SLEEP: 0.8 W OFF: 0.15 W

Dimensions with Stand (H x W x D)

Without VESA Adapter: 9.45" x 6.42" x 0.59" / 239.94 mm x 163 mm x 15 mm With VESA Adapter: 9.45" x 6.42" x 0.79" / 239.94 mm x 163 mm x 20 mm

Shipping Dimensions

Unpackaged: 1.32 lbs / 0.6 kg Packaged: 2.45 lbs / 1.11kg

Weight

Unpackaged: 1.32 lbs / 0.6 kg Packaged: 2.45 lbs / 1.11kg

Mounting Options

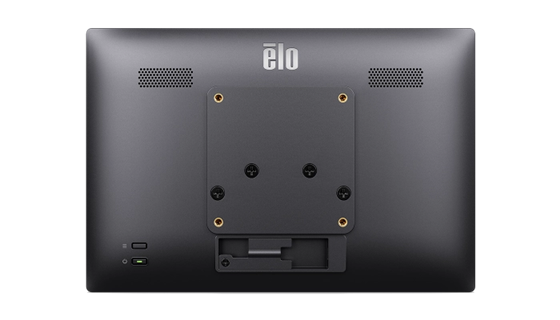

VESA via 4-hole 75mm mounting adapter on rear of unit.

Temperature

Operating: 0° C to 40° C / 32°F to 104°F; Storage: -20° C to 60° C / -4°F to 140°F

Humidity (non-condensing)

Operating: 20% - 80% / Storage: 10% - 95% (38.7° C max wet bulb temperature)

Impact Protection

IK07

Other Features

TUV Rhineland (Low Blue Light) Power collection function via DDCCI

Warranty

3 years

MTBF

50,000 hours demonstrated

Extended Warranty Option

4 year warranty coverage - Elo P/N: E898247 5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125

Box Content

1004LS Touch monitor Quick Install Guide USB Type-C cable 75mm VESA adapter (assembled)
