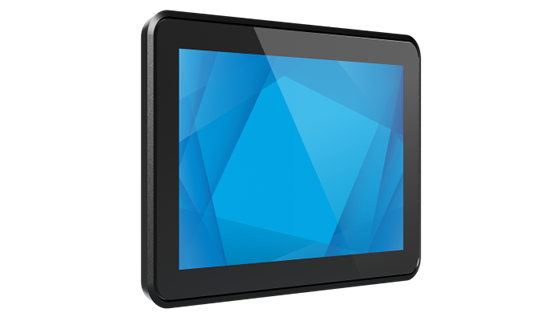

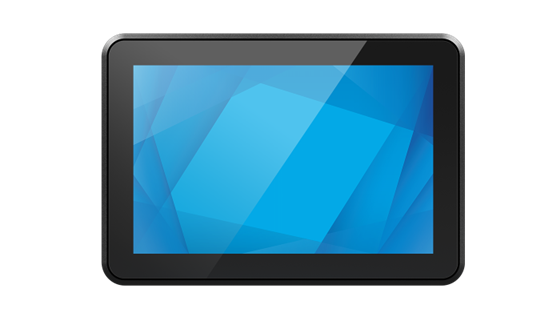

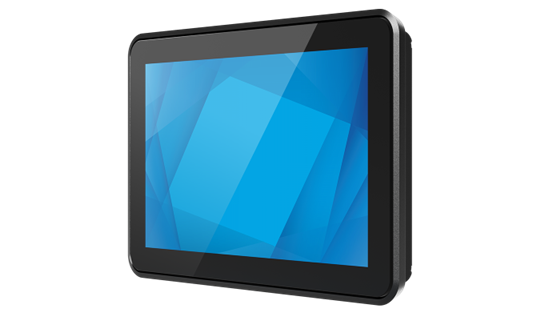

Open Frame Touch Display
Elo's 0764L 7-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 0764L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro PCAP display
The 7-inch 0764L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Enable power, video and touch with a single USB‑C cable.
Durable, energy efficient touchscreen.
- UL62368 & IK08 compliance
- Chemically-strengthened glass
- Ready for 24/7 use
- Wide operating voltage range (12V‑24V)
- Energy Star 7.0 certified

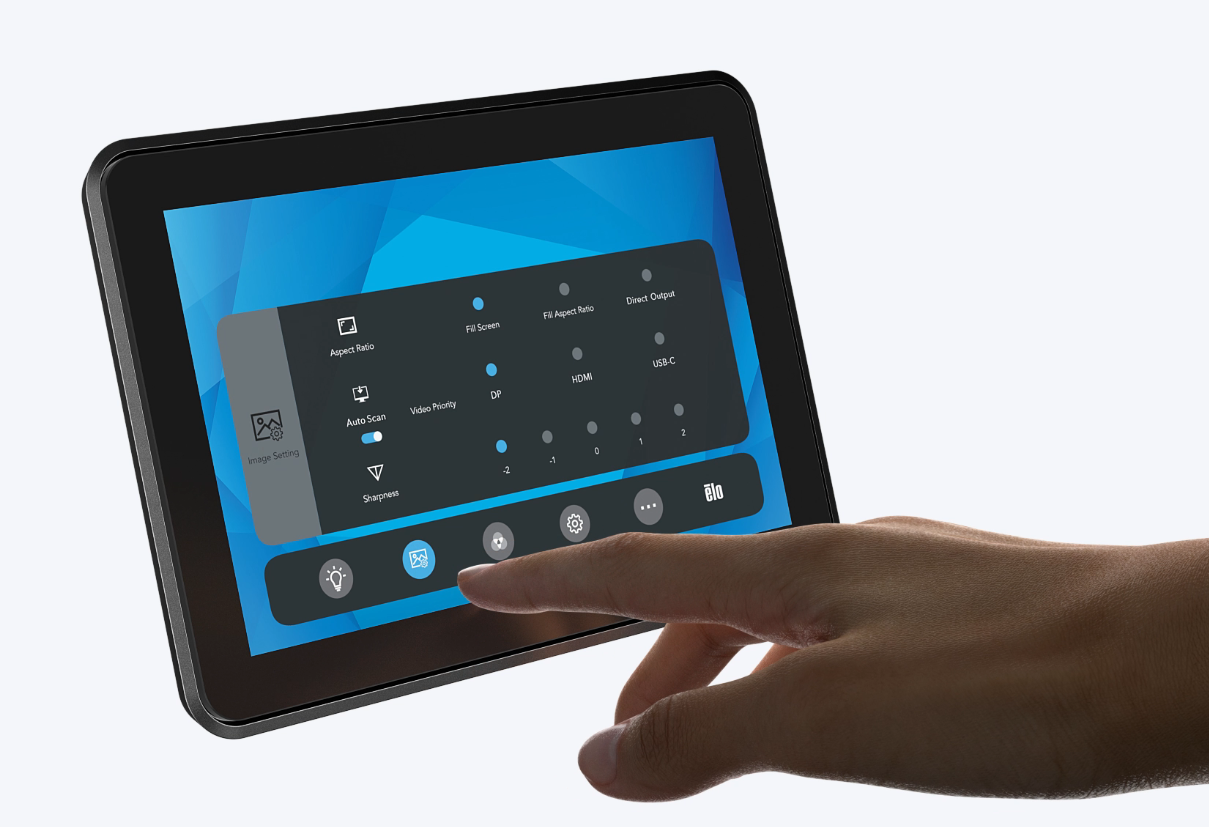

Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 7-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
LCD Technology
Active matrix TFT LCD
Active Display Area
5.90" x 3.69" / 149.76 mm x 93.60 mm
Native Resolution
1280 x 800
Preset Video Timings
640x480 60Hz; 800x500 60Hz; 800x600
56, 60Hz; 1024x768 60Hz; 1280x800 60Hz,
60Hz RB
Touch Technology
TouchPro® PCAP - up to 10 touches
Touch Thru
TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 400 nits; TouchPro PCAP: 360 nits
Response Time (Tr + Tf) (typical)
40 msec
Viewing Angle (typical)
Horizontal: 88°/176°; Vertical: 88°176°
Contrast Ratio (typical)
800:1
On-Screen Display (OSD)
On screen OSD with menu and power buttons on the back of the unit. Supported Touch gestures include:
<br>1. Call out the OSD menu. 2. lock/unlock the OSD button function. 3. lock/unlock the power button function.
<br>Controls: Menu, Power
<br>Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD
Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through
<br>Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
<br>Lockouts: OSD, Power
Video

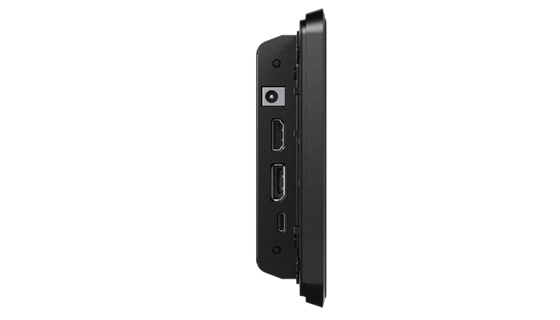

HDMI V1.4 Type A receptacle for HDMI input, DisplayPort V1.2 - Supports later versions of Display Port video input, USB Type-C
<br>*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues
Input Video Horizontal Sync frequency range: 30 – 80KHz, Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz
Power
Option1: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer
diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input power signal specifications: 12V – 24V DC +/- 5%;
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/-
0.3mm) Barrel length)
Option 2: USB Type-C Input range: 5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A
Power Consumption (Typical)
ON (Default - 80% Brightness): 4.57W
<br>ON (Typical - 100% Brightness): 6.84W
<br>SLEEP (monitor + adapter): 0.40W
<br>OFF (monitor + adapter): 0.25W
Mounting Options

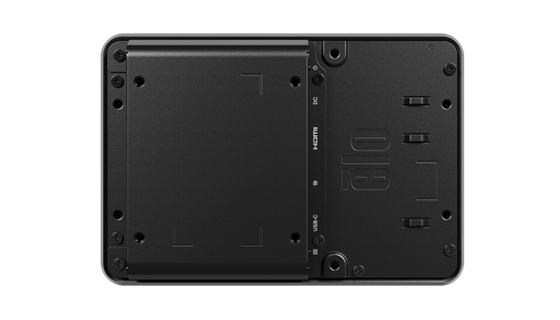

75 mm VESA mount, Mounting interface on all
4 sides, Flush mount with included brackets
Weight
Unpackaged: 1.47 lbs / 0.66 kg
<br>Packaged: 2.87 lbs / 1.3 kg
Dimensions
6.94" x 4.72" x 1.25" /
176.2 mm x 120.0 mm x 31.7 mm
Shipping Dimensions
9.13" x 6.70" x 3.74" /
232 mm x 170 mm x 95 mm
Temperature
Operating: 0° C to 40° C / 32° F to 104° F; Storage: -20° C to 60° C / -4° F to 140° F
Humidity (non-condensing)
Operating: 20% - 80%; Storage: 10% - 95%
Maximum operating time
24 hours/day
Ingress Protection
IPX1 for front side
Energy Star
Energy Star 7.0
Extended Warranty
4 year - Elo P/N: E898247, 5 year - Elo P/N: E898449,
3 year + AUR - Elo P/N: E898648, 4 year + AUR - Elo P/N: E894921,5 year + AUR - Elo P/N: E895125
MTBF
50,000 hours demonstrated
What’s in the Box
64-Series Monitor, HDMI cable, Touch USB Cable (USB-A to USB-C), Flush Mount Brackets w/Screws, Quick Install Guide , EEI Label
