Zebra DS457

Images may not reflect the actual product
Product Image
small product image0
small product image1
small product image2

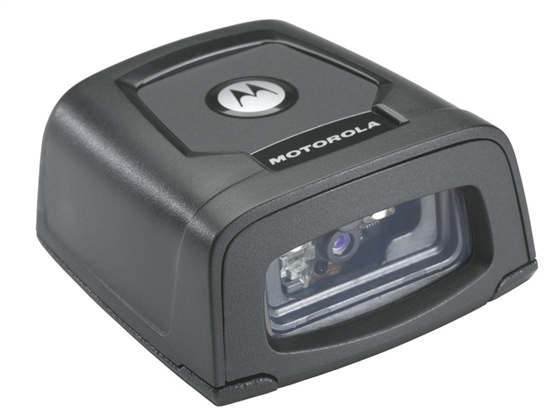

The Motorola DS457 barcode scanner offers aggressive 2D imaging in a tiny design, ideal for airport check-in, fast paced retail, or manufacturing environments. Available as a standard range, high density, or drivers license parsing imager, the DS457 has a model uniquely designed to meet your needs.

The DS457 can be triggered either via autosense mode, a button on the top of the scanner, or optional trigger jack, giving you the freedom to mount the barcode scanner virtually anywhere. The DS457 is a slight 2.3" x 2.44", easily mounted without detracting from your day-to-day operations.

The DS457 is built on Motorola's Blockbuster SE4500 scan engine, ensuring fast scanning of any barcode. With the ability to scan retail barcodes from up to 15.3" away, the DS457 is a fantastic choice for keeping retail lines moving smoothly. Motorola's blockbuster scan engine can also read barcodes off LCD displays, making the DS457 great for airport check in or mobile couponing. If you are looking to future proof your business's data collection, the DS457 is right barcode scanner for you.

    Features
  • Available in Standard Range, Drivers License Parsing, or High Density versions
  • Bright central dot improves aiming
  • Can scan in direct sunlight
  • IP54 seal protects from dust & water
    Part Number Breakdown
  • DS457-SR: Standard Range Imager, 1.5" to 15.3" scan range for 100% UPC-A
  • DS457-DL: Drivers License Parsing, 1.5" to 15.3" scan range for 100% UPC-A
  • DS457-HD: High Density Scanning, 1.7" to 8.3" scan range for 100% UPC-A

Specifications

Dimensions
Weight
Color Options
Interfaces Available
Scan Method
Decoding Capabilities
Mobility/Range
Typical Depth of Field
Indicators
Auto Sense Mode
Image Capture
Mobile Phone Scanning Capabilities
Ambient Light (Max)
Drivers License Data Parsing
Operating Temperature
Storage Temperature
Drop Specification
Environmental Sealing
Warranty
